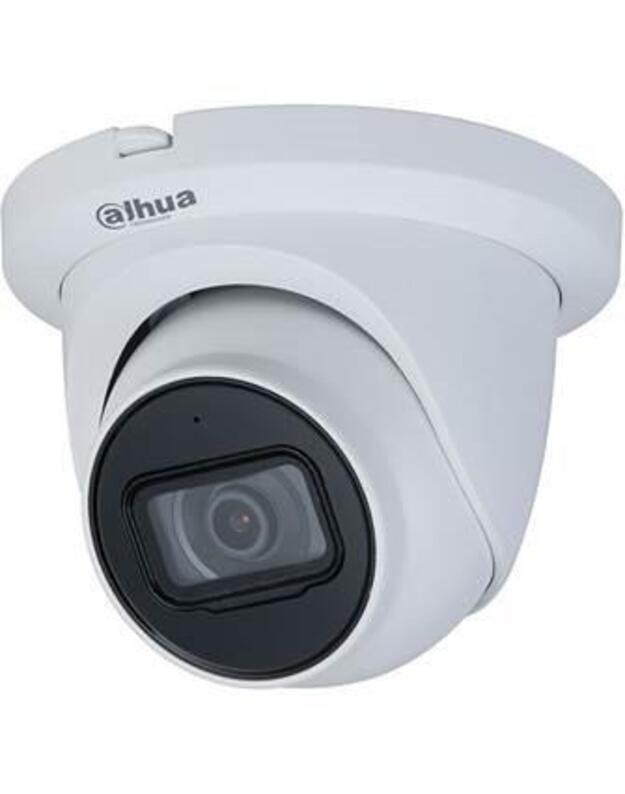

1/2.8" CMOS, 1920 × 1080 @ 30FPS
Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on
Fixed lens 2.8mm (107°)
True Day / Night with ICR Filter, Visible white LED up to 30 m
BLC / HLC / True WDR 130 dB, 3D DNR
Built-in microphone
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C
Power 12 VDC, 3.1 W max
.
| Techninė specifikacija |
| Camera design |
Eyeball |
| Dimensions |
Φ109.9 mm × 88.1 mm |
| Effective pixels |
1920(H)×1080(V) |
| Electronic Shutter Speed |
PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Environment |
Outdoor |
| Focal length |
2.8mm |
| Full Description Line |
Type Fixed Dome/HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.8" CMOS|Focal Length 2.8mm|Lens Mount M12|Min. Illumination 0.002 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s|Microphone Built-in|Power supply requirements 12 VDC|Dimensions Φ109.9 mm × 88.1 mm |
| Lens Mount |
M12 |
| Microphone |
Built-in |
| Min. Illumination |
0.002 |
| Pixel Resolution |
2 |
| Power consumption |
3.1 |
| Power supply requirements |
12 VDC |
| Sensor size |
1/2.8" CMOS |
| Shipping Box Depth |
13 |
| Shipping Box Height |
12 |
| Shipping Box Weight |
0.439 |
| Shipping Box Width |
11 |
| Shipping box quantity |
1 |
| Unit Brutto Volume |
0.001716 |
| Unit Gross Weight |
0.439 |
| Unit Net Weight |
0.28 |
| Vendor Homepage |
www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HDW1231TLMQ(-A) |
| Video interface |
HDCVI |
| iOS |
12V |
