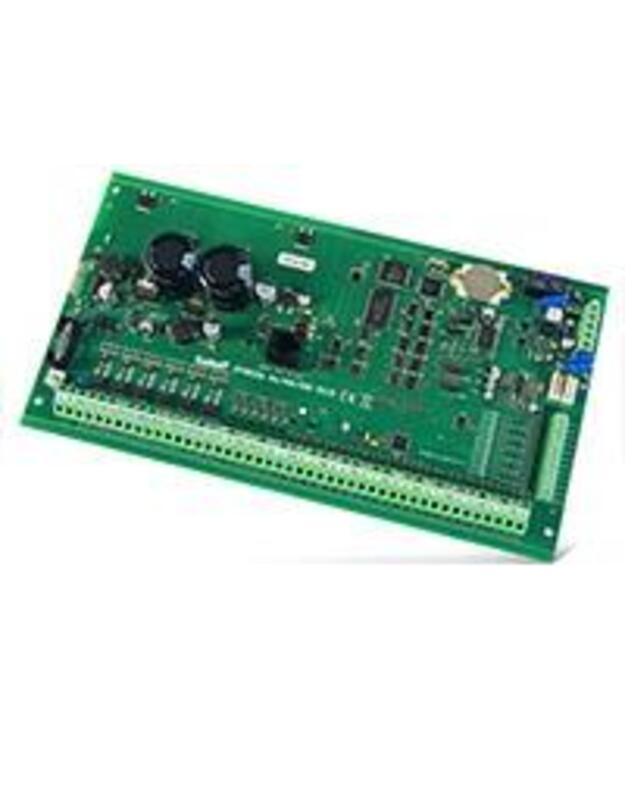

CONTROL PANEL GRADE 3/INTEGRA 256 PLUS SATEL

Owing to their full compliance with the EN50131 Grade 3 requirements, the INTEGRA Plus control panels will be a perfect solution for implementing advanced security systems in facilities with a particularly high risk of burglary, e.g. jewelry shops or public utility buildings. These control panels feature extended functionality, which enables them to be used to implement access control systems or even smart building systems.

• full compliance with the EN50131 series standards for Grade 3 devices
• built-in advanced 2A+1.5A power supply with extended diagnostic functions
• support for up to 256 zones with a possibility to program parametric resistance and operate 3EOL lines (only mainboard zones)
• USB port for programming by means of a PC
• possibility to divide the system into 32 partitions and 8 objects
• expandability up to 256 programmable outputs
• communication buses to connect keypads and expansion modules
• integrated phone communicator with reporting, voice messaging and remote control functions
• system operation by means of LCD keypads, partition keyboards, keyfobs and proximity cards or remote control via computer or mobile phone
• 64 independent automatic control timers
• access control and home automation functions
• event log for 24575 events, with a printout function
• support for up to 240+8+1 users
• firmware update capability by means of a computer
