Slim design. Stunning performance.
Introducing QMC, the slimmest display in the Samsung UHD Signage lineup. It brings elegance to businesses while maximizing space. Its enhanced internal solutions and intuitive home screen UX makes it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.
Maximum impact in minimum space
Ultra Slim Depth

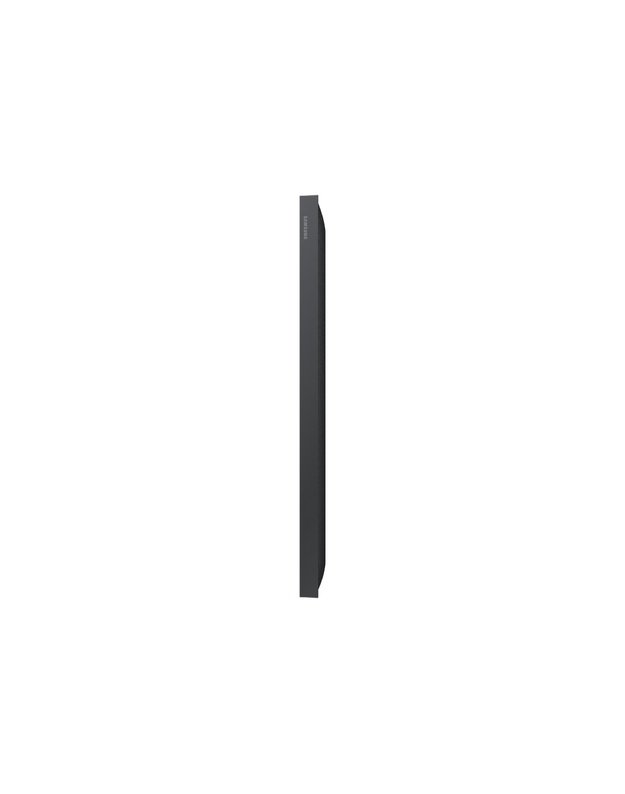

The QMC's ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment.
Clean visuals in landscape or portrait mode
Even Bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.
Secure and even mounting
Centered VESA Holes

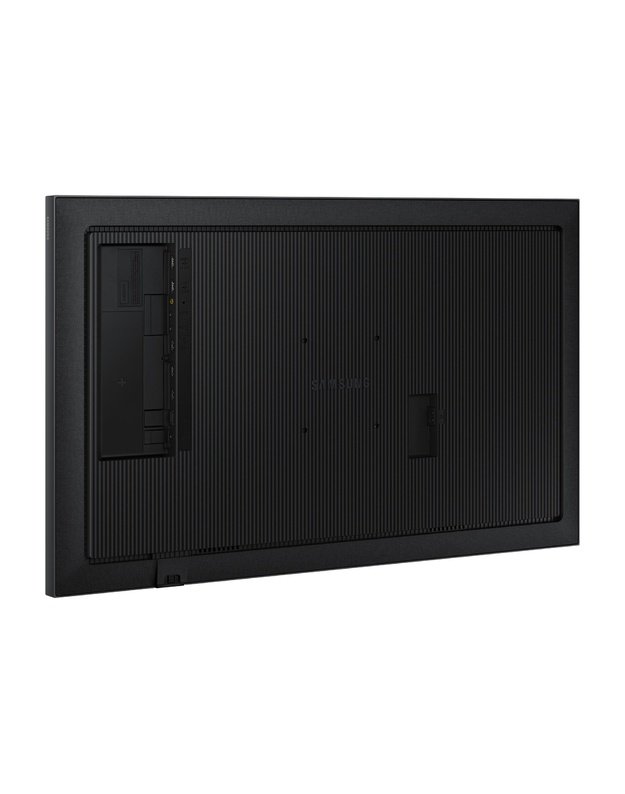

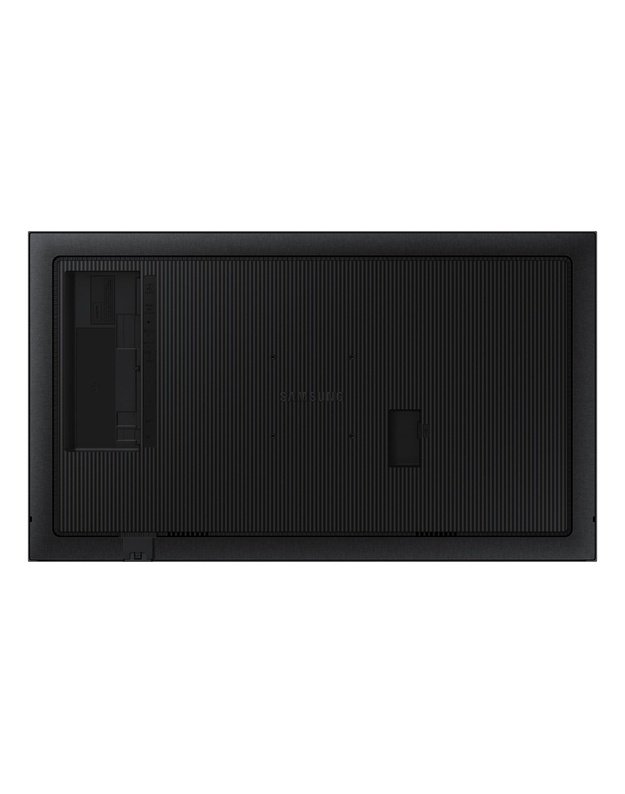

The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.
Lifelike colour
Dynamic Crystal Color
Experience immersive pictures with one billion shades of colour. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Samsung’s proprietary video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of the day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.
Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Simplified calibration between screens with mobile app
Smart Calibration
Experience complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration allows for every display to be calibrated correctly, showcasing brand logos and other collateral in the exact colours required.
Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards.
Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Building towards a sustainable future, today
Energy Star / EPEAT / TÜV Rheinland Carbon Footprint
Samsung is making diverse efforts to reduce our environmental impact in smart signage. As a result, QBC series has earned a series of certifications for environmentally preferable products from highly recognized institutes.
- Ultra Slim Depth
- Even Bezel
- Centered VESA Holes
Specifikacija
Ekranas
| Ekrano įstrižainė | 32 " |
| Ekrano technologija | LCD |
| Skydo tipas | VA |
| Ekrano rezoliucija | 1920 x 1080 pikseliai |
| Ekrano ryškumas | 400 cd/m² |
| HD tipas | „Full HD“ |
| Lietimui jautrus ekranas | Ne |
| Natūralus kraštinių santykis | 16:9 |
| Reakcijos laikas | 8 ms |
| Kontrasto santykis (tipinis) | 1200:1 |
| Dinaminio kontrasto santykio prekinis pavadinimas | „Mega Contrast“ |
| Matymo kampas, horizontalus | 178 ° |
| Matymo kampas, vertikalus | 178 ° |
| Pikselių žingsnis | 0.36375 x 0.36375 mm |
| Horizontali diapazono riba | 30 - 81 kHz |
| Miglotumo koeficientas | 2 % |
| Vertikali diapazono riba | 48 - 75 Hz |

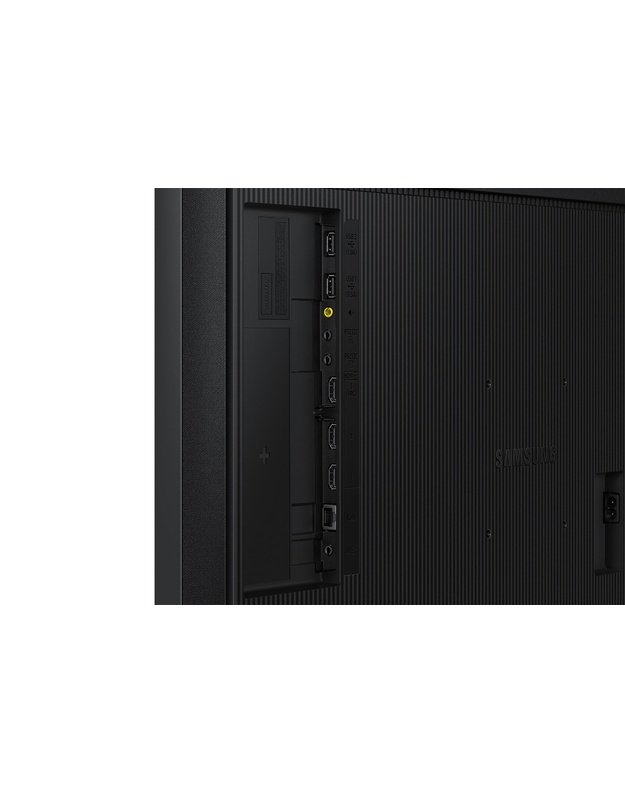

Ryšys
| HDMI portų kiekis | 3 |
| HDMI versija | 1.4 |
| DVI prievadas | Ne |
| USB prievadas | Taip |
| USB prievadų skaičius | 2 |
| Ethernet LAN (RJ-45) portų kiekis | 1 |
| RS-232 sąsaja | Taip |
| Infrared duomenų portas | Taip |
| Nuotolinio valdymo (IR) įvestis | 1 |
| PC garso „out jungtis“ | Taip |
Konstrukcija
| Gaminio konstrukcija | Skaitmeninis informacinis plokščias ekranas |
| Talpinimas palaikomas | Vidaus |
| Orientacija | Horizontalus / vertikalus |
| Produkto spalva | Juoda |
| Ekrano forma | Plokščias |
| VESA tvirtinimo pagrindas | Taip |
| Suderinama su VESA sienos tvirtinimo sistema | 100 x 100 mm |
| Rėmelių plotis (apačia) | 11.5 mm |
| Rėmelių plotis (šonas) | 11.5 mm |
| Rėmelių plotis (viršus) | 11.5 mm |
Veikimo charakteristikos
| Paskirtis | Komercinis |
| Darbo valandos (valandos / dienos) | 16/7 |
| HDCP | Taip |
| HDCP versija | 2.2 |
Energijos valdymas
| Energijos suvartojimas | 55 W |
| Energijos suvartojimas (sleep mode) | 0.5 W |
| AC įėjimo įtampa | 100 - 240 V |
| AC įėjimo dažnis | 50/60 Hz |
Kompiuterinė sistema
| Kompiuterio sistema | Taip |
| Vidinės saugyklos talpa | 8 GB |
| Numatyta operacinė sistema | Tizen 7.0 |
Svoris ir matmenys
| Ekrano plotis | 727.3 mm |
| Ekrano gylis | 28.5 mm |
| Ekrano aukštis | 421.9 mm |
| Ekrano svoris | 5200 g |
Pakuotės duomenys
| Pakuotės plotis | 817 mm |
| Pakuotės gylis | 119 mm |
| Pakuotės aukštis | 507 mm |
| Paketo svoris | 6900 g |
Aplinkos sąlygos
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Darbo santykinės drėgmės diapazonas | 10 - 80 % |
Tinklas
| Ethernet LAN jungtis | Taip |
| „Wi-Fi“ | Taip |
