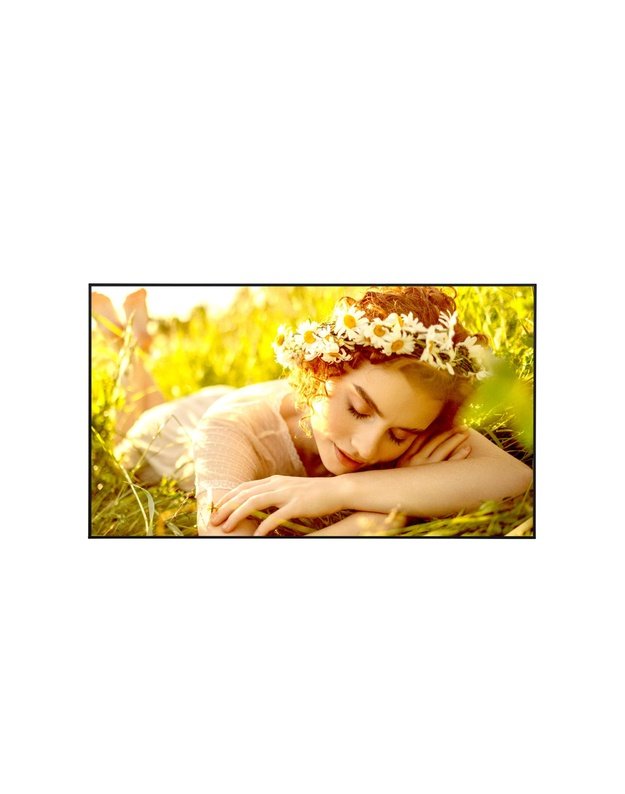

LG webOS UHD Signage for 24/7 Operation
Superb Picture Quality with Ultra HD Resolution
The UL5Q-M series, with UHD resolution, enhances the realism of colors and details in the content. Its wide viewing angle offers clear visuals, while its 500-nit brightness vividly showcases the content.
High-Performance with LG webOS 6.1
LG webOS 6.1 is available on the UL5Q-M series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.
Even Bezel Design
The UL5Q-M series features even bezels, enhancing the aesthetic appeal of various spaces. These uniform bezels not only facilitate easy installation but also transform standard displays into elegant focal points.
Adaptive Viewing Experience
Experience the flexibility with the UL5Q-M series’ up/down tilt capability. Whether mounted high or low, the display can be adjusted to eye level, offering viewer engagement regardless of installation height. This versatility not only enhances spatial efficiency but also provides visual comfort, delivering clear information from various viewing angles.
Engineered for 24/7 Operation
Built for environments that never sleep, the UL5Q-M series features panel technology that enables 24/7 operation.
* The UL5Q-M series includes the same standard warranty period as other signage models and offers an optional extended warranty, providing coverage for up to 5 years in total. If the extended warranty is purchased, coverage ends when either 50,000 hours of usage is reached or the 5-year period expires, whichever comes first.
Built-In Brightness Sensor
The UL5Q-M series’ front-mounted brightness sensor automatically adjusts brightness to match various lighting conditions, optimizing viewing quality and energy efficiency without manual intervention. This adaptive feature offers consistent display performance while also supporting power optimization, delivering a visual experience that dynamically responds to environmental changes.
Advanced Security Architecture
The UL5Q-M series incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.
Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anytime, anywhere from their mobile phone & PC in a network-accessible environment, with access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
EPEAT Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL5Q-M series is an EPEAT Bronze-certified* display which means that it meets all the required criteria in the Computers and Displays category.
LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients’ businesses.
* The availability of the ‘LG ConnectedCare’ service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nit (Typ.)
- 24Hr Usage Scene (24 Hours / 7 Days)
- Even Bezel
- High-Performance with webOS 6.1
Specifikacija
Ekranas
| Ekrano įstrižainė | 75 " |
| Ekrano technologija | LED |
| Skydo tipas | ADS |
| Ekrano rezoliucija | 3840 x 2160 pikseliai |
| Ekrano ryškumas | 500 cd/m² |
| HD tipas | 4K Ultra HD |
| Lietimui jautrus ekranas | Ne |
| Natūralus kraštinių santykis | 16:9 |
| Reakcijos laikas | 8 ms |
| Kontrasto santykis (tipinis) | 1200:1 |
| Kontrasto santykis (dinaminis) | 1000000:1 |
| Matymo kampas, horizontalus | 178 ° |
| Matymo kampas, vertikalus | 178 ° |
| Ekrano spalvų skaičius | 1,07 milijardo spalvų |
| Spalvų sodrumas | 80 % |
| Nominalioji tarnavimo trukmė | 50000 h |
| Būdingas atnaujinimo dažnis | 60 Hz |
Ryšys
| HDMI portų kiekis | 3 |
| HDMI versija | 2.2/1.4 |
| DVI prievadas | Ne |
| USB prievadas | Taip |
| USB prievadų skaičius | 2 |
| USB versija | 2.0 |
| USB jungtis | USB A tipo |
| Ethernet LAN (RJ-45) portų kiekis | 1 |
| RS-232C | Taip |
| PC garso „out jungtis“ | Taip |
Garsas
| Įmontuoti garsiakalbiai | Taip |
| Įmontuotų garsakalbių skaičius | 2 |
| RMS galingumas | 20 W |
Konstrukcija
| Gaminio konstrukcija | Skaitmeninis informacinis plokščias ekranas |
| Talpinimas palaikomas | Vidaus |
| Orientacija | Horizontalus / vertikalus |
| Produkto spalva | Juoda |
| VESA tvirtinimo pagrindas | Taip |
| Suderinama su VESA sienos tvirtinimo sistema | 400 x 400 mm |
| Rėmelių plotis (apačia) | 12.9 mm |
| Rėmelių plotis (šonas) | 12.9 mm |
| Rėmelių plotis (viršus) | 12.9 mm |
| Apvado spalva | Black |
Veikimo charakteristikos
| Paskirtis | Komercinis |
| On Screen Display (OSD) kalbos | Anglų kalba/Arabų/Čekų/Danų kalba/Graikų/Ispanų kalba/Italų kalba/Japonų/Korėjiečių/Lenkų kalba/Norvegų kalba/Olandų kalba/Portugalų kalba/Prancūzų kalba/Rusų kalba/Suomių kalba/Supaprastinta kinų/Švedų kalba/Tradicinė kinų/Turkų/Vokiečių kalba |
| Darbo valandos (valandos / dienos) | 24/7 |
| „webRTC“ palaikymas | Taip |
| Žiniatinklio naršyklė | Taip |
Energijos valdymas
| Energijos suvartojimas | 188 W |
| Energijos suvartojimas (off) | 0.5 W |
| AC įėjimo įtampa | 100 - 240 V |
| AC įėjimo dažnis | 50/60 Hz |
Kompiuterinė sistema
| Vidinė atmintis | 8 GB |
| Numatyta operacinė sistema | WebOS |
| Operacinės sistemos versija | 6.1 |
Svoris ir matmenys
| Ekrano plotis | 1679.7 mm |
| Ekrano gylis | 58.5 mm |
| Ekrano aukštis | 958.9 mm |
| Ekrano svoris | 24100 g |
Pakuotės duomenys
| Pakuotės plotis | 1875 mm |
| Pakuotės gylis | 1145 mm |
| Pakuotės aukštis | 175 mm |
| Paketo svoris | 31600 g |
Pakuotės turinys
| Pridedamas nuotolinio valdymo pultelis | Taip |
| Pridėti kabeliai | Energija |
Aplinkos sąlygos
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Darbo santykinės drėgmės diapazonas | 10 - 80 % |
Tinklas
| Ethernet LAN jungtis | Taip |
| „Wi-Fi“ | Taip |
Jutikliai
| Giroskopas | Taip |
| Temperatūros jutiklis | Taip |
Techninė informacija
| Atitikties sertifikatai | CB/CE/Elektromagnetinis suderinamumas (EMS)/Federalinė ryšių komisija (FCC) |
