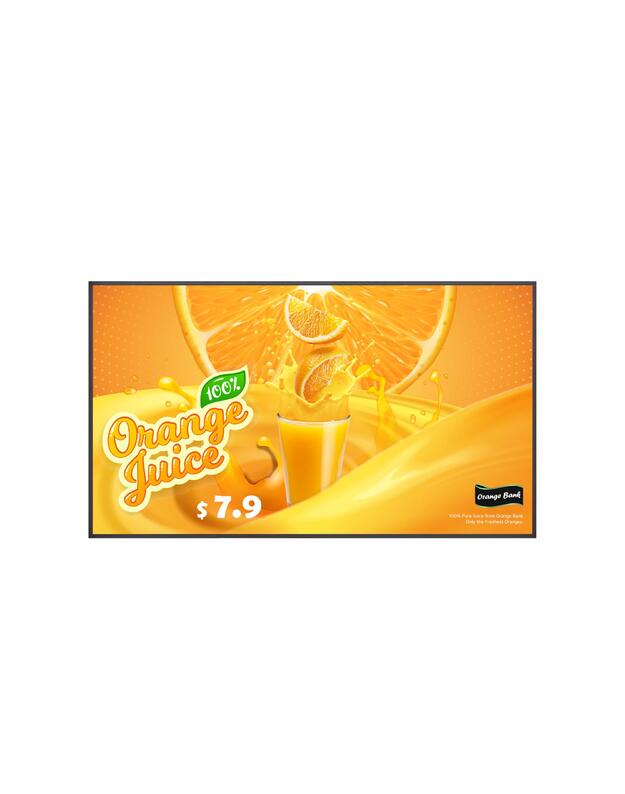

UHD Signage Display with LG webOS Platform and Advanced Security
Superb Picture Quality with Ultra HD Resolution
With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.
Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
Durability that Provides Reliability for LG UHD Signage Optimized for business environments
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction, ensuring the durability of LG UHD signage.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
LG SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 11.4 mm (Even Bezel)
- webOS Smart Platform
- LG Shield
Specifications
Display
| Display diagonal | 65 " |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Display number of colours | 1.07 billion colours |
| LED backlight | Yes |
| Panel life | 50000 h |
| Native refresh rate | 60 Hz |
Ports & interfaces
| HDMI ports quantity | 3 |
| HDMI version | 2.2/1.4 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
Audio
| Built-in speaker(s) | Yes |
| Bluetooth audio | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Design
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 11.4 mm |
| Bezel width (side) | 11.4 mm |
| Bezel width (top) | 11.4 mm |
Performance
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
Power
| Power consumption (typical) | 130 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5184 W |
| Power consumption (economy mode) | 91 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 130 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Heat generation (typical) | 444 BTU/h |
| Heat generation (max) | 699 BTU/h |
Computer system
| Built-in processor | Yes |
| Operating system installed | WebOS |
Weight & dimensions
| Display width | 1459 mm |
| Display depth | 297 mm |
| Display height | 835 mm |
| Display weight | 21000 g |
Packaging data
| Package width | 1580 mm |
| Package depth | 172 mm |
| Package height | 950 mm |
| Package weight | 27000 g |
Packaging content
| Tilt angle | 15 ° |
| Remote control included | Yes |
| Cables included | AC |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80 % |
Network
Sensors
| Gyroscope | Yes |
| Temperature sensor | Yes |
Other features
| Power supply type | Internal |
Energy Efficiency
| Energy efficiency class | G |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2406051/fiches?language=EN |
| EPREL Version Number | 2 |
| EPREL Registration Number | 2406051 |
