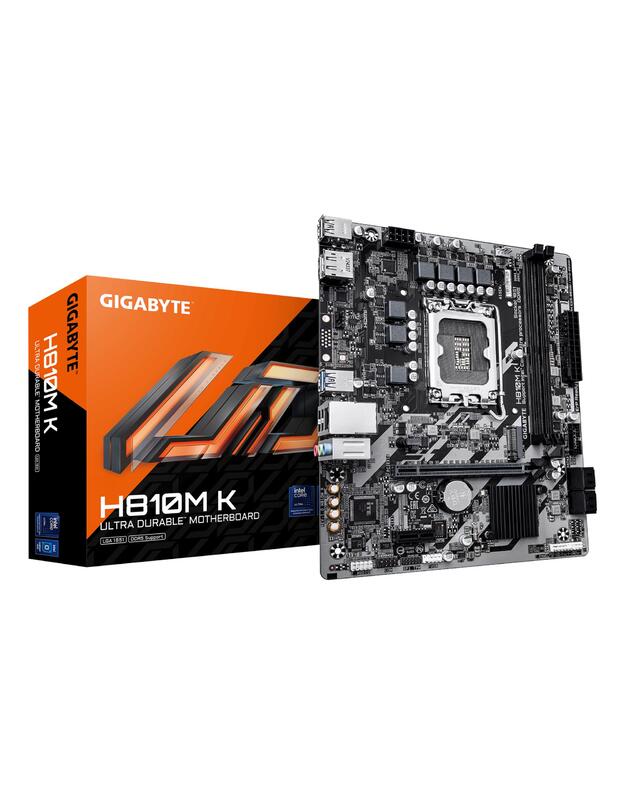

Motherboard Gigabyte H810M K 1.0, Intel H810, LGA1851, Micro-ATX, DDR5

Discount -17%
Add to compare Add to wish list

Product code: 1450136

Available quantity 9

GIGABYTE H810M K Motherboard - Intel Core Ultra (Series 2) CPUs, 3+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
€9223 €11099 inc VAT
This item has a discount and you save - €1876
Have any questions about this item? Ask
Warranty: 36
Manufacturer: GIGABYTE

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 3+1+2 phases VRM solution
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, DisplayPort

Specifications

Features

Motherboard chipsetIntel H810
Audio chipRealtek ALC897
Product colourDark brown
PC health monitoringFan/Temperature/Voltage/Water cooling
Component forPC
Motherboard form factormicro ATX
Audio output channels7.1 channels
Cooling typePassive
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10 x64/Windows 11 x64

Processor

Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds5600/6400 MHz
Supported memory clock speed (max)6400 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,PCI Express 4.0,SATA III
Number of HDDs supported4
Number of storage drives supported5
RAID supportYes
RAID levels0/1/10/5

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors1
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
Serial port headers1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version2.1
Headphone outputs1
Line-inYes
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width265 mm
Package depth265 mm
Package height54 mm
Package weight766.6 g

Weight & dimensions

Width226 mm
Depth185 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Other features

Weight688 g

Technical details

Warranty period3 year(s)
Technical specification
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
ACPI version 5.0
ATX Power connector (24-pin) Yes
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Batteries included Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper Yes
Compatible processor series Intel Core Ultra (Series 2)
Component for PC
Cooling type Passive
CPU fan connector Yes
Depth 185 mm
Desktop Management Interface (DMI) version 2.7
DirectX version 12.0
DisplayPort version 2.1
DisplayPorts quantity 1
ECC сompatibility ECC & Non-ECC
EPS power connector (8-pin) Yes
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Front panel audio connector Yes
Front panel connector Yes
HDCP Yes
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Height 35 mm
LAN controller Realtek RTL8111H
Line-in Yes
Lithium weight per battery 0.07 g
Maximum internal memory 128 GB
Maximum internal memory per slot 64 GB
Maximum resolution 4096 x 2160 pixels
Memory channels Dual-channel
Memory slots type DIMM
Microphone in Yes
Motherboard chipset Intel H810
Motherboard chipset family Intel
Motherboard form factor micro ATX
Number of battery cells 1
Number of chassis fan connectors 1
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 1
Number of memory slots 2
Number of SATA III connectors 4
Number of storage drives supported 5
Package depth 265 mm
Package height 54 mm
Package weight 766.6 g
Package width 265 mm
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Power source type ATX
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Product colour Dark brown
RAID levels 0/1/10/5
RAID support Yes
Screws included Yes
Serial port headers 1
Supported memory clock speed (max) 6400 MHz
Supported memory clock speeds 5600/6400 MHz
Supported memory types DDR5-SDRAM
Supported processor sockets LGA 1851
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD
System Management BIOS (SMBIOS) version 2.7
TPM connector Yes
Unbuffered memory Yes
USB 2.0 connectors 1
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Warranty period 3 year(s)
Weight 688 g
Width 226 mm
WiFi No
Windows operating systems supported Windows 10 x64/Windows 11 x64
