Switch|TP-LINK|TL-SF1005LP|5x10Base-T / 100Base-TX|PoE ports 4|TL-SF1005LP

Product code: 1310600

5x10Base-T / 100Base-TX | PoE ports 4 | Switching capacity 1 Gbps | Forwarding rate 0.744 Mpps | Dimensions 100 x 98 x 25 mm | Unit Net Weight 0.6 kg
Warranty: 60
Manufacturer: TP-LINK

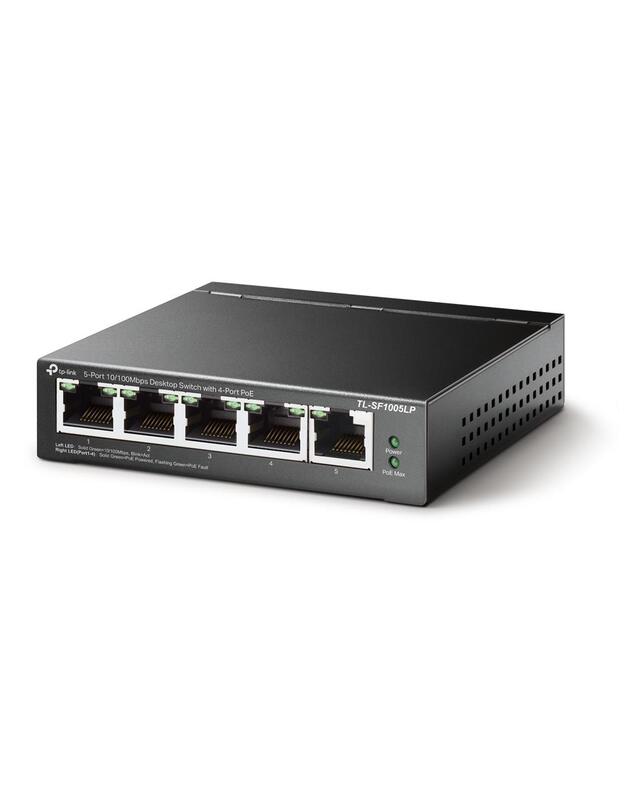

TL-SF1005LP

5-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports
  • Plug and play with no configuration required
Technical specification
10G support No
AC adapter included Yes
AC input frequency 50 Hz
AC input voltage 220 V
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Cable types supported Cat3/Cat4/Cat5/Cat5e
Compliance certificates CE/Federal Communications Commission (FCC)/RoHS
Copper ethernet cabling technology 100BASE-TX/10BASE-T
Depth 98 mm
Dimensions 100 x 98 x 25 mm
eSATA 5
Fanless Yes
Flow control support Yes
Forwarding rate 0.744
Full Description Line 5x10Base-T / 100Base-TX|PoE ports 4|Switching capacity 1 Gbps|Forwarding rate 0.744 Mpps|Dimensions 100 x 98 x 25 mm|Unit Net Weight 0.6 kg
Full-duplex Yes
Half duplex Yes
Heat dissipation 160.27 BTU/h
Height 25 mm
Included Accessories TL-SF1005P; Power adapter; User manual
Input current 0.81 A
Input voltage 53.5 V
Jumbo frames 2000
Jumbo frames support Yes
LED indicators Yes
MAC address auto-aging supported Yes
MAC address table 2000 entries
Model name TL-SF1005LP
Networking standards IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Package depth 196 mm
Package height 121 mm
Package weight 740 g
Package width 131 mm
PoE ports 4
Power consumption (max) 47 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power source DC/PoE
Power supply included Yes
Primary port count 5
Product colour Black
Rack mounting No
Shipping Box Depth 42
Shipping Box Height 39
Shipping box quantity 12
Shipping Box Weight 9.7
Shipping Box Width 29
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Sustainability compliance Yes
Switch type Unmanaged
Switching capacity 1
Total Power over Ethernet (PoE) budget 41 W
Unit Brutto Volume 0.003959
Unit Gross Weight 0.808
Unit Net Weight 0.6
User guide Yes
Vendor Homepage www.tp-link.com/uk/business-networking/poe-switch/tl-sf1005lp/
Width 100 mm
