- Super 4G+ Speed: Supports 4G + Cat12 to boost data speeds up to 600Mbps.
- 2+2 Dual-band Wi-Fi 6: Deliver amazing wireless speeds up to 3000Mbps on dual bands (5GHz band supports 160MHz).
- EasyMesh: Provides whole-home Wi-Fi coverage with standard mesh technology.
- Backup Backup: WAN and 3G/4G backup strategy for continuous internet connectivity.
- VoLTE/CSFB Telephony: Ensure you and your family stay connected.

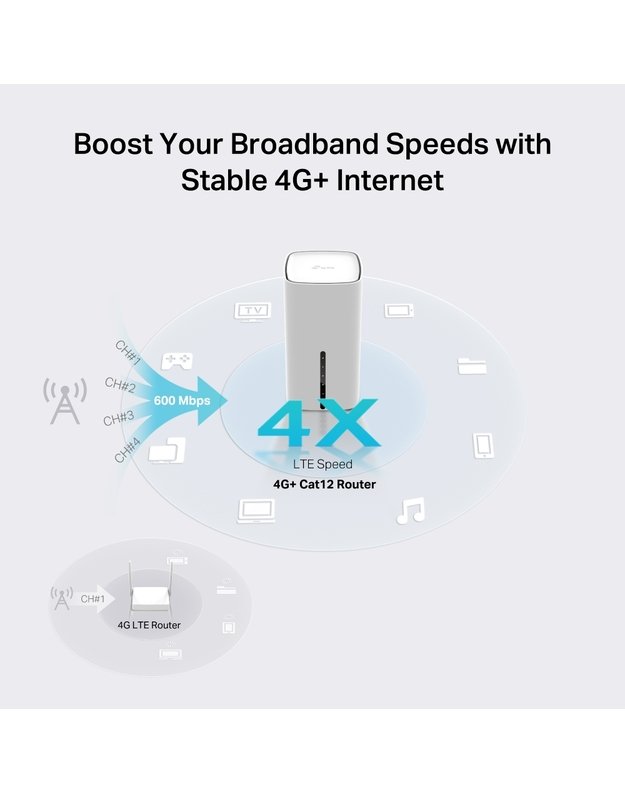

Boost Your 4G+ Speed: Supports 4G+ Cat12, which used Carrier Aggregation technology to boost data speeds up to 600Mbps. Plug in a SIM card and enjoy HD movies without interruption, download files in seconds, and play games online smoothly.
AX3000 Dual Band Wi-Fi 6 Speed: 2402Mbps (5GHz) + 574Mbps (2.4GHz).
Plug & Play: Enjoy 4G+ network immediately after inserting a SIM card.
VoLTE/CSFB Telephony: With 1 voice port, users can make or receive calls over the Internet by simply connecting the device to an existing telephone set.
EasyMesh Support: Work with EasyMesh products to create a more flexible and cost-effective Mesh network with a single Wi-Fi name and seamlessly cover the whole home.
Full Gigabit Ports for Seamless Connectivity: Full Gigabit Ethernet ports provide fast and reliable connectivity to high-intensity wired devices such as smart TV, game console, NAS, etc.
Remote Management: Supports TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud).
HARDWARE FEATURES
External Power Supply Output: 12V/2A
Input: 100-240V~50-60Hz 0.8A

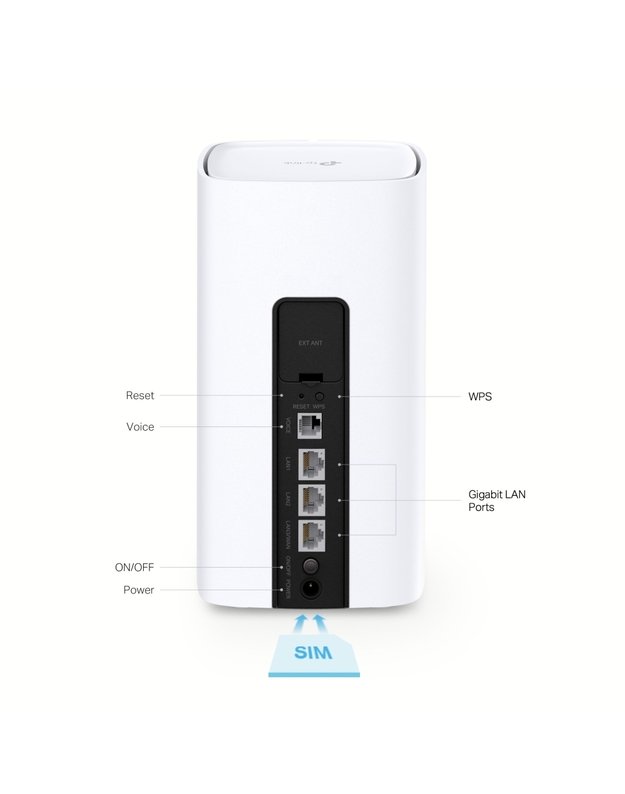

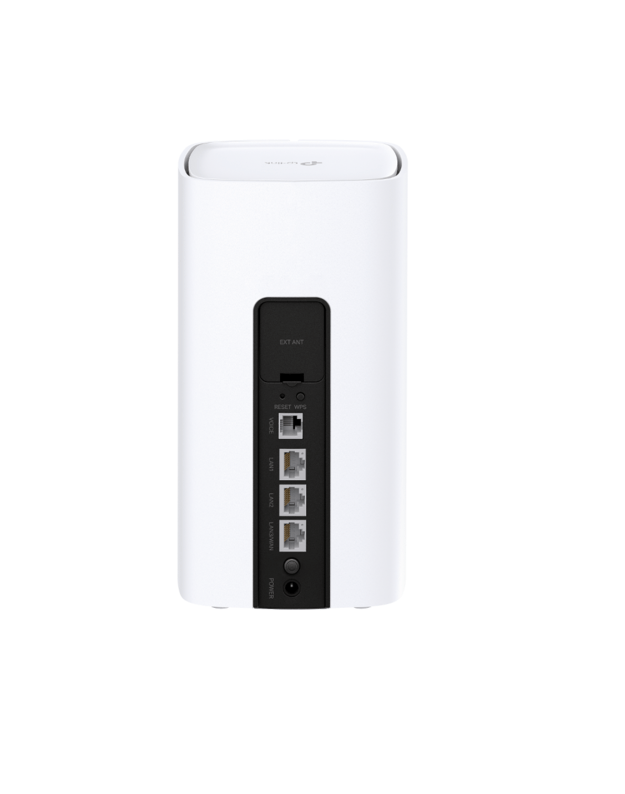

Interface 3× 10/100/1000 Mbps RJ45 LAN Ports
(1 port for WAN/LAN auto-sensing)
Button 1 RESET/WIFI multiplex button & 1 WPS button
Antenna Internal WIFI antennas; optional Internal/external LTE antennas
Dimensions ( W x D x H ) 3.9 × 3.9 × 7.56 in (99 × 99 × 192mm)
CPU 1 GHz Dual-Core CPU
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 574Mbps at 2.4GHz, 2402Mbps at 5GHz
Transmit Power CE:≤20dbm(2.4GHz);≤23dbm(5G band1/band2);
≤30dbm(5G band3)
RCM: ≤30dbm(2.4GHz);≤23dbm(5G band1/band2);
≤30dbm(5G band3/band4)
Wireless Security WPA/WPA2-PSK/WPA3 encryption
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n/ax 2.4GHz
Network Type 4G:
FDD-LTE:B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41/B42/B43
3G:
DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B3/B5/B8
Mesh Technology 802.11k/v/r, support EasyMesh
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Protocols Supports IPv4 and IPv6
Working Mode 4G/3G, Wi-Fi Router
Multi SSID 3 more 2.4GHz/5GHz Network
Features Parental Controls, QoS (Quality of Service), Address
Reservation, Port Forwarding, Dynamic DDNS, SIM
Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV,
IPv6, NAT Forwarding, Firewall, LED Control, Network
Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM,
OFDMA, IPSEC VPN, WEB Remote Control
OTHERS
Certification CE, RoHS
Package Contents 4G+ Cat12 AX3000 Wi-Fi 6 Telephony Router MX515v
1 RJ45 Ethernet Cable
1 Power Adapter
1 RJ11 Cable
1 Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows
7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet
Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or
higher.
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
