TP-Link NX511V 5G router

TP-Link NX511v 5G modem is an advanced solution for those looking for a fast and stable connection. With 5G connectivity and Wi-Fi 6 technology, it provides not only high speed, but also greater network capacity and efficiency, even when multiple devices are connected. EasyMesh technology helps extend the connection area throughout the apartment or even the house.

Boost Your 5G Speed: Take advantage of your advanced 5G network with download speeds up to 3.4 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
AX3000 Dual-Band Wi-Fi 6 Speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

VoLTE/CSFB Telephony: With 1 Voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set.
Plug & Play: Enjoy 5G network right after inserting a SIM card.

Support EasyMesh: Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Fully Gigabit Ports for Consummate Connectivity: Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
Easy Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

• The 5G modem supports download speeds of up to 3.4 Gbps.
• The integrated VoLTE function allows high-quality voice calls over the Internet.
• AX3000 Dual-band Wi-Fi 6 technology ensures high speed and efficiency.
• Gigabit Ethernet ports guarantee a stable wired connection.

Specifications

CPU: 1 GHz dual-core processor

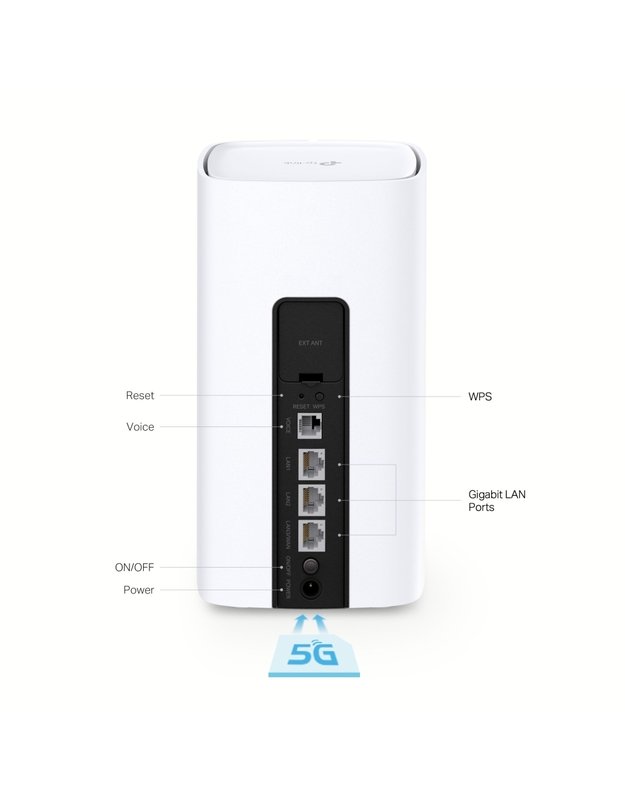

Interface: 3 × 10/100/1000 Mbps RJ45 LAN ports
(1 port for WAN / LAN auto-sensing)
Button: 1 RESET / WIFI multiplex button and 1 WPS button
External power supply: 12V / 2A
Input: 100-240V~50-60Hz 0.8A
Dimensions: (W x H x D) 3.9 × 3.9 × 7.56 inches (99 × 99 × 192 mm)
Antenna: Internal WIFI antennas; optional internal/external LTE/5G antenna
WIRELESS FEATURES
Wireless standards: IEEE 802.11a/n/ac/ax 5GHz,
IEEE: 802.11b/g/n/ax 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal rate: 5G SA: 2.4Gbps (downstream) / 900Mbps (upstream)
5G NSA: 3.4Gbps (downstream) / 550Mbps (upstream)
LTE: 1.6Gbps (downstream) / 200Mbps (upstream).
Transmission power CE: ≤20dbm (2.4GHz); ≤23dbm (5G Band 1 / Band 2);
≤30dbm (5G Band3)
RCM: ≤30dbm (2.4GHz);≤23dbm (5G Band1/Band2);
≤30dbm (5G Band 3 / Band 4)
Wireless Security WPA/WPA2-PSK/WPA3 Encryption
5G Network Type:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N77/N78
4G:
FDD-LTE: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32
TDD-LTE: B38 / B40 / B41 / B42 / B43
3G:
DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA B1/B5/B8
Mesh Technology 802.11k/v/r, supports EasyMesh
SOFTWARE FEATURES
Working Mode 5G/4G/3G, Wi-Fi Router
Multiple SSIDs 3 more 2.4GHz / 5GHz Network
Features Parental Control, QoS (Quality of Service), Address
Reservation, Port Forwarding, Dynamic DDNS, SIM
Management, SMS, Cloud Upgrade, EasyMesh, VoLTE, IPTV,
IPv6, NAT Forwarding, Firewall, LED Control, Network
Diagnostics, CWMP, SNMP, Traffic Statistics, WPS, 1024-QAM,
OFDMA, IPSEC VPN, Web Remote Control
WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Protocols Supports IPv4 and IPv6
OTHER
Certification CE, RoHS
Package Contents 5G AX3000 Wifi6 Telephony Router NX511v
1 RJ45 Ethernet Cable
1 Power Adapter
1 RJ11 Cable
1 Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows
7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet
Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or
above.
Environment Operating temperature: 0°C ~ 40°C (32°F ~104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% non-condensing
