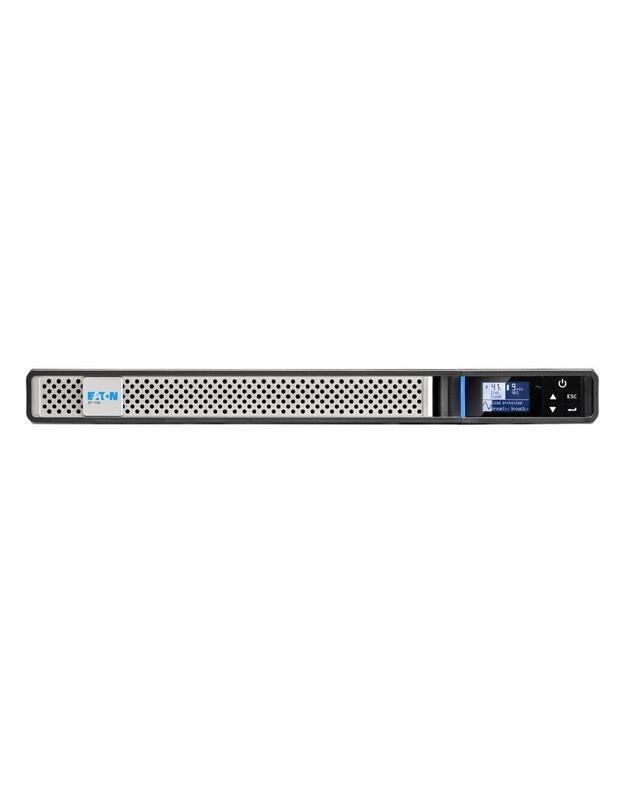

UPS Eaton 5P G2 Rack 1150VA 920W (5P1150IRNG2)

Discount -22%
Add to compare Add to wish list

Product code: 1441475

Available quantity 1

Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
€1,25958 €1,61999 inc VAT
This item has a discount and you save - €36041
Have any questions about this item? Ask
Warranty: 24
Manufacturer: EATON

Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Specifications

Features

UPS topologyLine-Interactive
Output power capacity1.15 kVA
Output power920 W
WaveformSine
Input operation voltage (min)150 V
Input operation voltage (max)294 V
Input frequency47/70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Heat dissipation465 BTU/h
Number of input phases1
Number of output phases1
Efficiency98.2 %
Power factor0.8
Noise level35 dB

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)
USB portYes
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
Network card slotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage6 V
Number of battery cells4
Typical backup time at half load12.5 min
Hot-swap batteryYes

Design

Form factorRackmount
Rack capacity1U
Product colourBlack,Silver
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90 %
Operating altitude0 - 3000 m

Packaging content

Rack mount kitYes
Cables includedUSB cable
Quick installation guideYes

Certificates

Compliance certificatesLow Voltage Directive (LVD)/RoHS
Waste Electrical and Electronic Equipment (WEEE) complianceYes
CertificationEMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Weight & dimensions

Width438 mm
Depth509 mm
Height43.2 mm
Weight14280 g
Technical specification
AC outlet types C13 coupler
AC outlets quantity 6 AC outlet(s)
Automatic Voltage Regulation (AVR) Yes
Battery capacity 9 Ah
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 6 V
Cables included USB cable
Certification EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Compliance certificates Low Voltage Directive (LVD)/RoHS
Depth 509 mm
Display Type LCD
Efficiency 98.2 %
Form Factor Rackmount
Heat dissipation 465 BTU/h
Height 43.2 mm
Hot-swap battery Yes
Input frequency 47/70 Hz
Input operation voltage (max) 294 V
Input operation voltage (min) 150 V
LED indicators Yes
Network card slot Yes
Noise level 35 dB
Number of battery cells 4
Number of input phases 1
Number of output phases 1
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 90 %
Operating temperature (T-T) 0 - 40 °C
Output frequency 50/60 Hz
Output operation voltage (max) 240 V
Output operation voltage (min) 200 V
Output power 920 W
Output power capacity 1.15 kVA
Power factor 0.8
Power plug C14 coupler
Product colour Black,Silver
Quick installation guide Yes
Rack capacity 1U
Rack mount kit Yes
Serial interface Yes
Serial interface type RS-232
Serial ports quantity 1
Typical backup time at half load 12.5 min
UPS topology Line-Interactive
USB port Yes
USB port type USB Type-B
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Waveform Sine
Weight 14280 g
Width 438 mm
