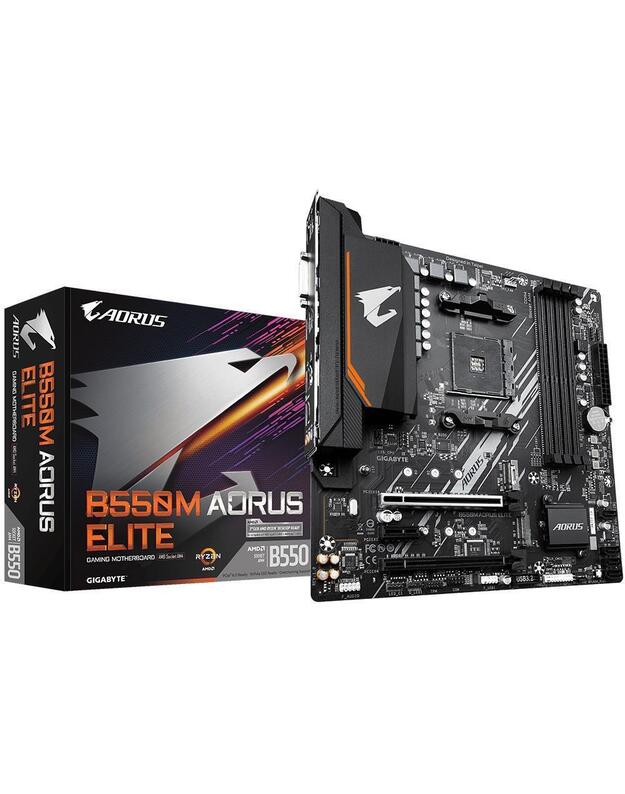

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
| Techninė specifikacija |
| Audio-In |
2 |
| Audio-Out |
1 |
| Battery weight |
3 |
| Chipset |
AMD B550 |
| Depth |
244 |
| Form Factor |
Micro-ATX |
| Frequency speed |
2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 |
| Full Description Line |
AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header |
| HDMI |
1 |
| Height |
35 |
| Integrated LAN |
Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| PCI-Express 3.0 1x |
1 |
| PCI-Express 3.0 4x |
1 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
27.5 |
| Shipping Box Height |
7.2 |
| Shipping Box Weight |
1.08 |
| Shipping Box Width |
27 |
| Shipping box quantity |
1 |
| Socket |
SAM4 |
| TPM |
Header |
| USB 2.0 |
4 |
| USB 3.2 |
4 |
| Unit Brutto Volume |
0.005346 |
| Unit Gross Weight |
1.08 |
| Unit Net Weight |
0.8 |
| Vendor Homepage |
www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-rev-13#kf |
| Width |
244 |
| iOS |
2 |
