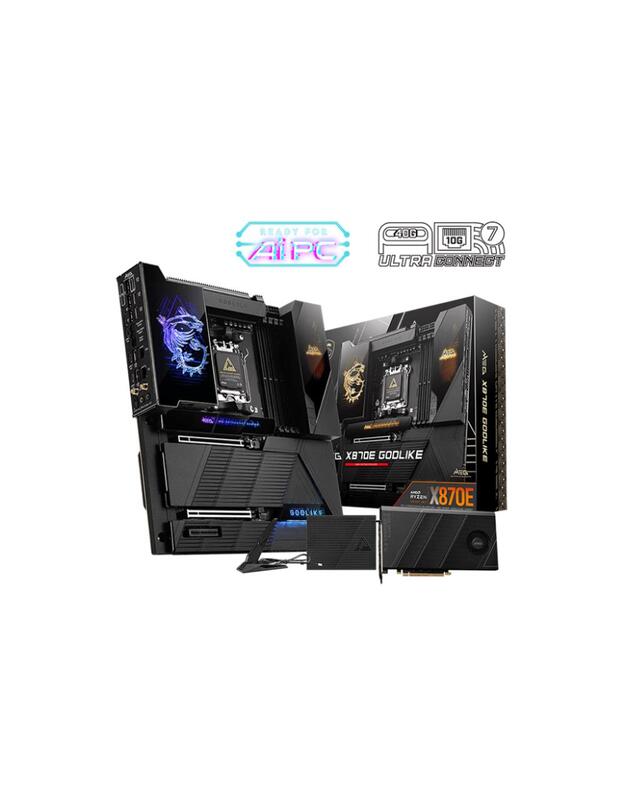

MEG X870E GODLIKE
Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
- Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
- M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
- Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
- Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
- Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
| Techninė specifikacija |
| Audio port |
2 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Bluetooth |
Yes |
| Chipset |
AMD X870E |
| Form Factor |
EATX |
| Frequency speed |
4800/6400/8400/9000 |
| Full Description Line |
AMD X870E|SAM5|EATX|DDR5|9000/8400/6400/4800 MHz|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|7xM.2|1xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|4xUSB-C|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 10 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header |
| Integrated LAN |
10 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| PCI-Express 16x |
2 |
| PCI-Express 1x |
1 |
| RAID |
SATA 0, 1, 10; NVMe 0, 1, 10 |
| RJ45 |
2 |
| SATA |
Yes |
| Shipping Box Depth |
48 |
| Shipping Box Height |
46.2 |
| Shipping Box Weight |
15 |
| Shipping Box Width |
37 |
| Socket |
SAM5 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
Yes |
| Vendor Homepage |
www.msi.com/Motherboard/MEG-X870E-GODLIKE |
| WiFi |
Yes |
| iOS |
7 |
