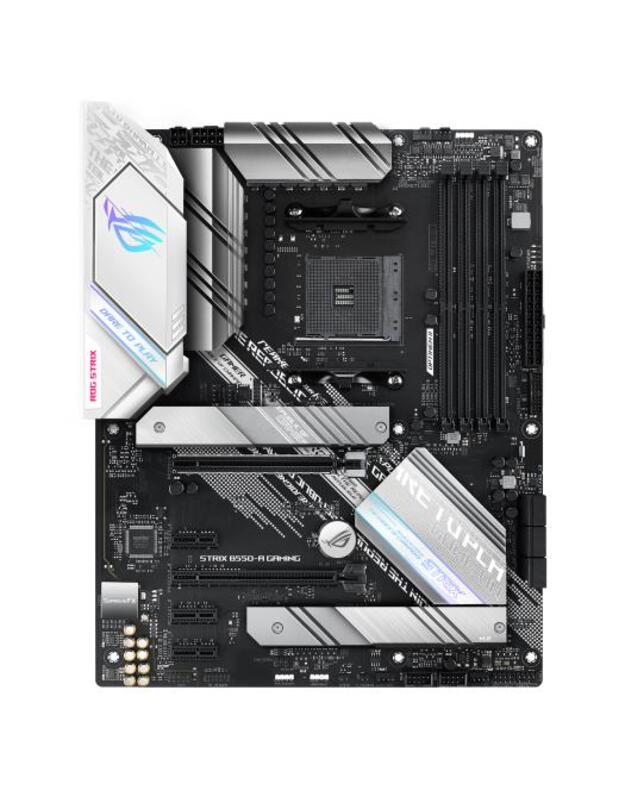

MB AMD B550 SAM4 ATX/ROG STRIX B550-A GAMING ASUS
MB AMD B550 SAM4 ATX/ROG STRIX B550-A GAMING ASUS
| Garantija: |
36 |
| Gamintojas: |
ASUS |
ROG STRIX B550-A GAMING
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
| Techninė specifikacija |
| Audio-In |
2 |
| Audio-Out |
3 |
| Chipset |
AMD B550 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600/4800/5100 |
| Full Description Line |
AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|DDR4|5100/4800/4600/4400/4133/4000/3866/3600/3466/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xHDMI|1xDisplayPort|2xAudio-In|3xAudio-Out|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|SATA|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10 |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 1x |
3 |
| PCI-Express 3.0 4x |
1 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
37 |
| Shipping Box Height |
30 |
| Shipping Box Weight |
7.6 |
| Shipping Box Width |
29 |
| Shipping box quantity |
4 |
| Socket |
SAM4 |
| USB 2.0 |
2 |
| USB 3.2 |
5 |
| USB type C |
1 |
| USB-C |
1 |
| Unit Brutto Volume |
0.008048 |
| Unit Gross Weight |
1.9 |
| Unit Net Weight |
1.2 |
| Vendor Homepage |
rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/ |
| iOS |
2 |
