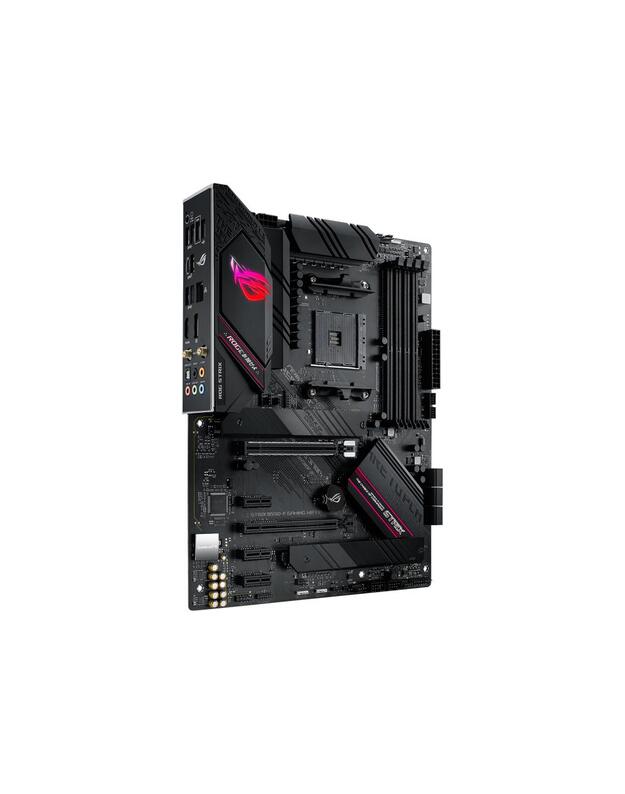

ROG STRIX B550-F GAMING WIFI II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
| Techninė specifikacija |
| Audio-In |
2 |
| Audio-Out |
3 |
| Bluetooth |
Yes |
| Chipset |
AMD B550 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4266/4400/4600/4866/5100 |
| Full Description Line |
AMD B550|SAM4|ATX|DDR4|5100/4866/4600/4400/4266/4133/4000/3866/3600/3466/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|3xAudio-Out|2xUSB 2.0|5xUSB 3.2|1xUSB type C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10 |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 1x |
3 |
| PCI-Express 3.0 4x |
1 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
34 |
| Shipping Box Height |
7 |
| Shipping Box Weight |
1.77 |
| Shipping Box Width |
27 |
| Shipping box quantity |
1 |
| Socket |
SAM4 |
| USB 2.0 |
2 |
| USB 3.2 |
5 |
| USB type C |
1 |
| USB-C |
1 |
| Unit Brutto Volume |
0.006426 |
| Unit Gross Weight |
1.77 |
| Unit Net Weight |
1.2 |
| Vendor Homepage |
rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/ |
| WiFi |
Yes |
| iOS |
2 |
