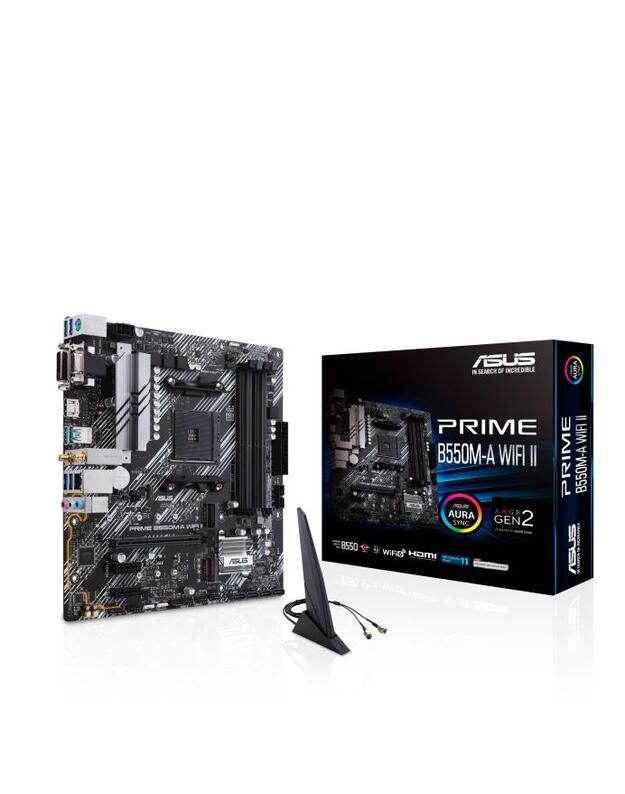

PRIME B550M-A WIFI II
AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support
AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Audio-In |
2 |
| Audio-Out |
1 |
| Bluetooth |
Yes |
| Chipset |
AMD B550 |
| Form Factor |
MicroATX |
| Frequency speed |
2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4800/4866 |
| Full Description Line |
AMD B550|SAM4|Micro-ATX|DDR4|4866/4800/4600/4466/4400/4333/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|6xUSB 3.2|1xPS/2|1xRJ45|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header |
| HDMI |
1 |
| Included Accessories |
2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x M.2 SSD screw package |
| Integrated LAN |
Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| PCI-Express 3.0 1x |
2 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
28 |
| Shipping Box Height |
7 |
| Shipping Box Weight |
1.178 |
| Shipping Box Width |
27 |
| Shipping box quantity |
1 |
| Socket |
SAM4 |
| TPM |
Header |
| USB 3.2 |
6 |
| Unit Brutto Volume |
0.00539 |
| Unit Gross Weight |
1.437 |
| Unit Net Weight |
0.7 |
| Vendor Homepage |
www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B550M-A-WIFI-II/ |
| WiFi |
Yes |
| iOS |
2 |
