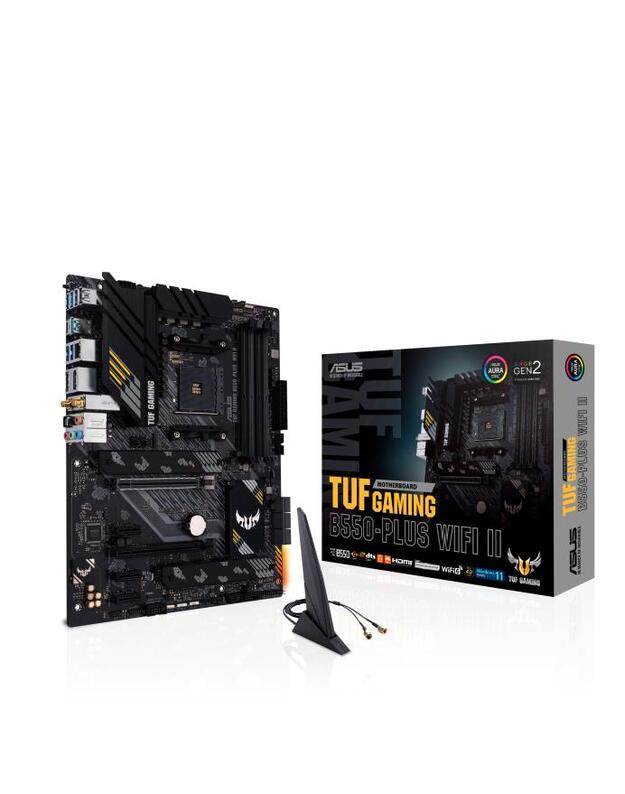

TUF GAMING B550-PLUS WIFI II
AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
- Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
| Techninė specifikacija |
| Audio port |
5 |
| Audio-In |
2 |
| Audio-Out |
3 |
| Bluetooth |
Yes |
| Chipset |
AMD B550 |
| DisplayPort |
1 |
| Form Factor |
MicroATX |
| Frequency speed |
2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4800/4866 |
| Full Description Line |
AMD B550|SAM4|MicroATX|DDR4|4866/4800/4600/4466/4400/4333/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|3xAudio-Out|2xUSB 2.0|5xUSB 3.2|1xUSB type C|1xOptical S/PDIF|1xRJ45|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 1x |
3 |
| PCI-Express 3.0 4x |
1 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| SATA 3.0 |
Yes |
| Serial |
Yes |
| Shipping Box Depth |
28 |
| Shipping Box Height |
7 |
| Shipping Box Weight |
1.437 |
| Shipping Box Width |
27.5 |
| Shipping box quantity |
1 |
| Socket |
SAM4 |
| TPM |
Header |
| USB 2.0 |
2 |
| USB 3.2 |
5 |
| USB type C |
1 |
| USB-C |
1 |
| Unit Brutto Volume |
0.00539 |
| Unit Gross Weight |
1.44 |
| Unit Net Weight |
1.06 |
| Vendor Homepage |
www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550-PLUS-WIFI-II/ |
| WiFi |
Yes |
| iOS |
2 |
