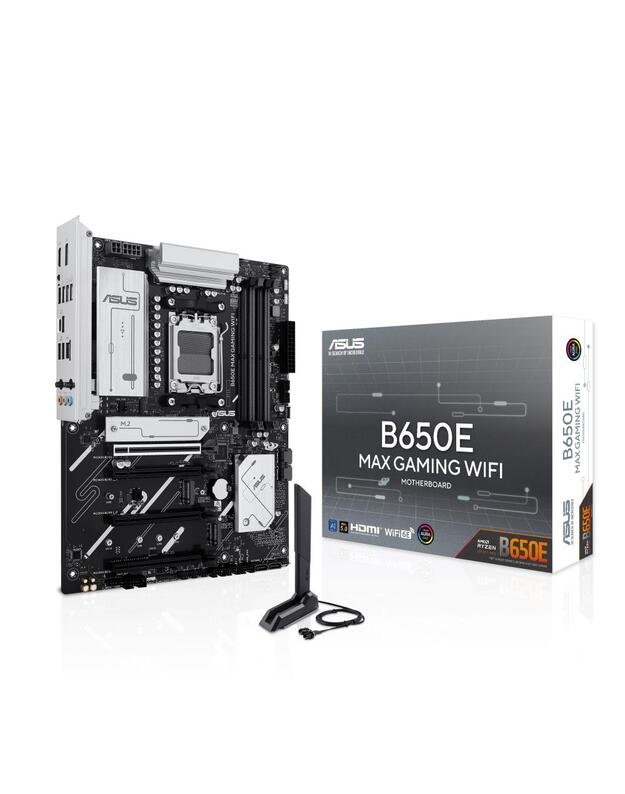

B650E MAX GAMING WIFI
AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 10Gbps Type-A & Type-C® support, BIOS FlashBack™, Aura Sync
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- CEC Tier II ready
| Techninė specifikacija |
| Audio port |
3 |
| Bluetooth |
Yes |
| Chipset |
AMD B650 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
8000 |
| Full Description Line |
AMD B650|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10 |
| HDMI |
1 |
| Included Accessories |
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package3 x Screw packages for M.2 SSDDocumentation1 x Quick start guide |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
36.9 |
| Shipping Box Height |
29.4 |
| Shipping Box Weight |
9.1 |
| Shipping Box Width |
36.7 |
| Socket |
SAM5 |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
Yes |
| Vendor Homepage |
www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi/ |
| WiFi |
Yes |
| iOS |
2 |
