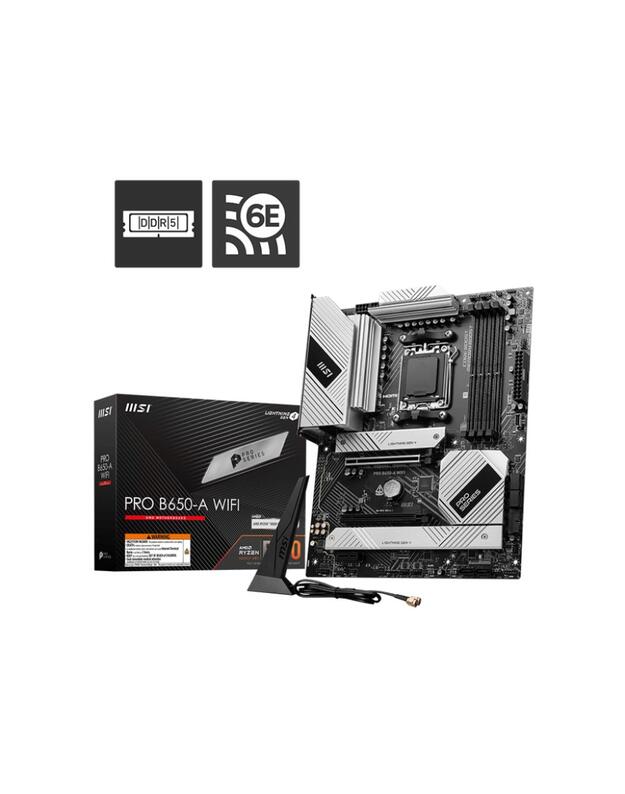

PRO B650-A WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Techninė specifikacija |
| Audio port |
3 |
| Bluetooth |
Yes |
| Chipset |
AMD B650 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 |
| Full Description Line |
AMD B650|SAM5|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Realtek ALC4080 |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 1x |
1 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 10; NVMe 0, 1, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
38 |
| Shipping Box Height |
38 |
| Shipping Box Weight |
10.01 |
| Shipping Box Width |
29 |
| Socket |
SAM5 |
| TPM |
Header |
| USB 2.0 |
2 |
| USB 3.2 |
7 |
| USB-C |
1 |
| Vendor Homepage |
www.msi.com/Motherboard/PRO-B650-A-WIFI |
| WiFi |
Yes |
| iOS |
3 |
