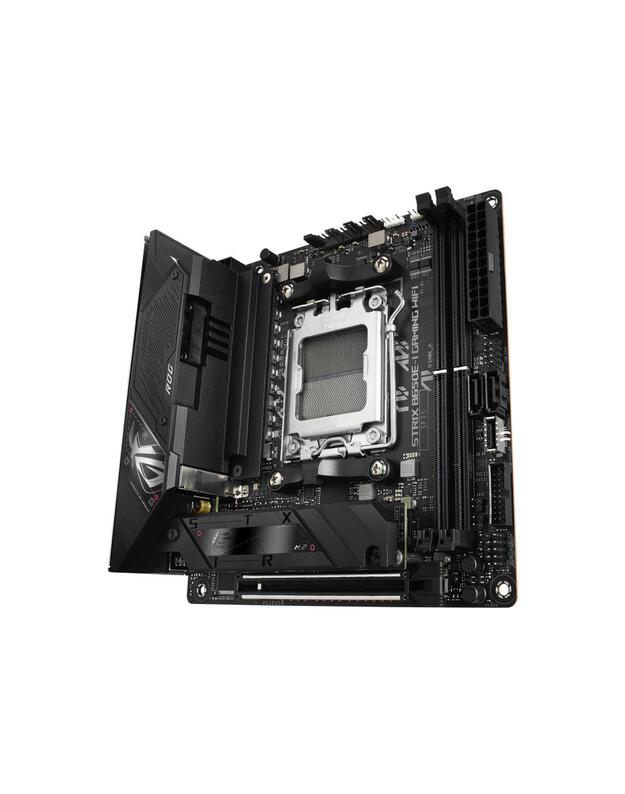

ROG STRIX B650E-I GAMING WIFI
Don’t be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it’s a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.
Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.
| Techninė specifikacija |
| Audio-In |
2 |
| Audio-Out |
1 |
| Bluetooth |
Yes |
| Chipset |
AMD B650 |
| Form Factor |
Mini-ITX |
| Frequency speed |
4800/5000/5200/5400/5600/5800/6000/6200/6400 |
| Full Description Line |
AMD B650|SAM5|Mini-ITX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1 |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
2 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| RAID |
SATA 0, 1 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
23 |
| Shipping Box Height |
9.5 |
| Shipping Box Weight |
1.317 |
| Shipping Box Width |
18.5 |
| Shipping box quantity |
1 |
| Socket |
SAM5 |
| USB 2.0 |
2 |
| USB 3.2 |
4 |
| USB-C |
2 |
| Unit Brutto Volume |
0.004042 |
| Unit Gross Weight |
1.32 |
| Unit Net Weight |
0.8 |
| Vendor Homepage |
rog.asus.com/motherboards/rog-strix/rog-strix-b650e-i-gaming-wifi-model/ |
| WiFi |
Yes |
| iOS |
2 |
