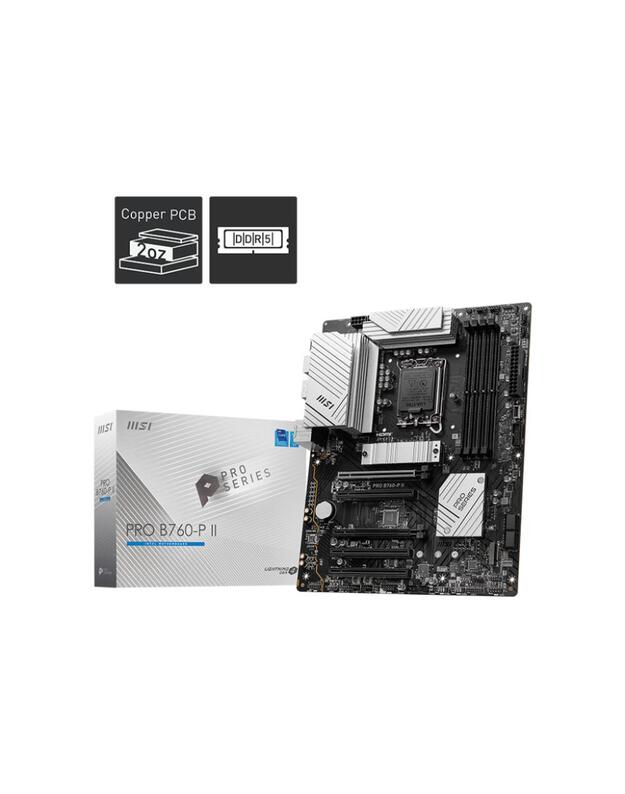

PRO B760-P II
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 10Gbps: Powered by Intel USB 10Gbps controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Techninė specifikacija |
| Audio port |
5 |
| Chipset |
Intel B760 Express |
| DisplayPort |
1 |
| Frequency speed |
4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 |
| Full Description Line |
Intel B760 Express|LGA1700|DDR5|7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Realtek ALC897 |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
56 |
| Shipping Box Height |
37 |
| Shipping Box Weight |
15.1 |
| Shipping Box Width |
35 |
| Shipping box quantity |
10 |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
1 |
| Unit Brutto Volume |
0.007252 |
| Unit Gross Weight |
1.51 |
| Unit Net Weight |
1.3 |
| Vendor Homepage |
www.msi.com/Motherboard/PRO-B760-P-II |
| iOS |
2 |
