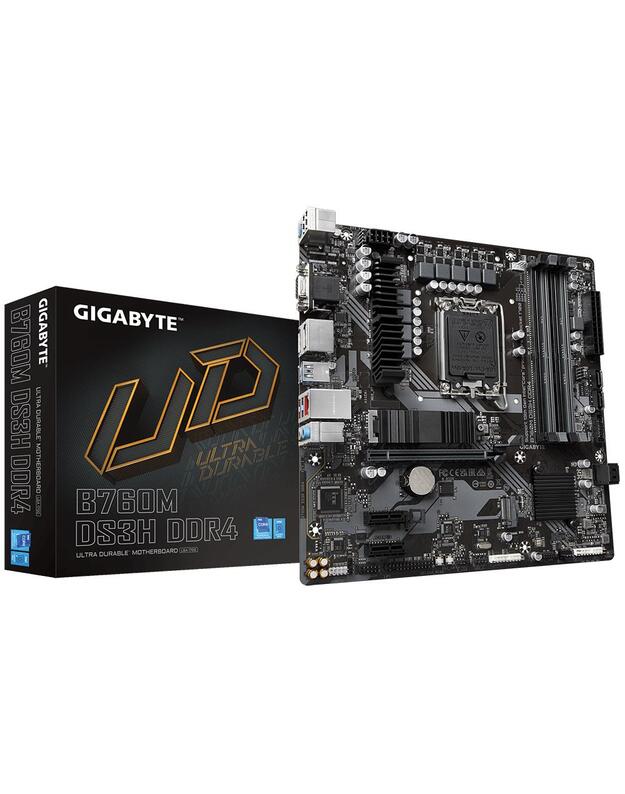

- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4:4*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard:To Ensure M.2 SSD Performance
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Audio port |
3 |
| Chipset |
Intel B760 Express |
| DisplayPort |
2 |
| Form Factor |
Micro-ATX |
| Frequency speed |
2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 |
| Full Description Line |
Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| PCI-Express 3.0 1x |
2 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
27 |
| Shipping Box Height |
27 |
| Shipping Box Weight |
0.92 |
| Shipping Box Width |
5.5 |
| Shipping box quantity |
1 |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
1 |
| Unit Brutto Volume |
0.00401 |
| Unit Gross Weight |
0.92 |
| Unit Net Weight |
0.75 |
| Vendor Homepage |
www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10#kf |
| iOS |
2 |
