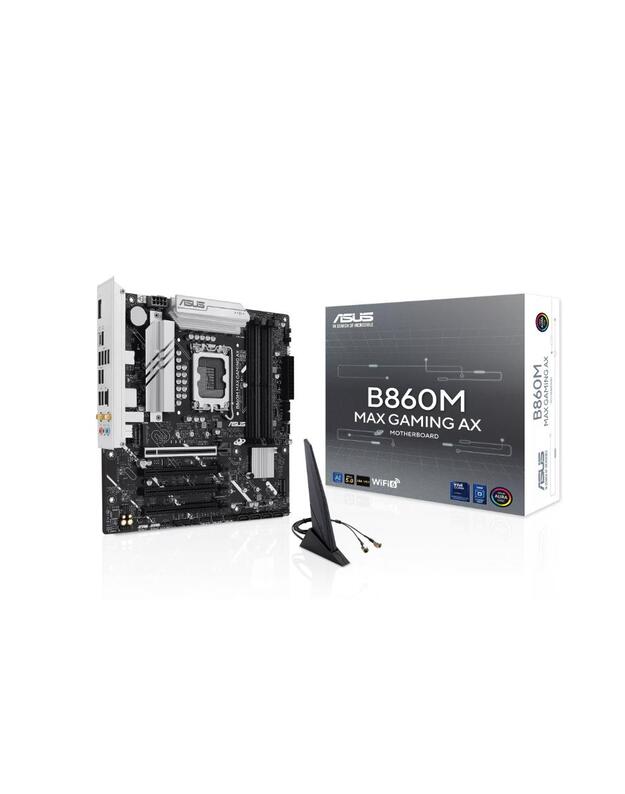

ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the B860M MAX GAMING AX motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance
Robust power design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The B860M MAX GAMING AX is designed to meet the needs of high-core-count CPUs. It features 6(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
Enhanced Memory & Storage Performance
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Three M.2 slots (up to 128Gbps)
The B860M MAX GAMING AX offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooling
Cooler by design
The B860M MAX GAMING AX motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Cooling
Smart cooling precision
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
Flexibility
Empowering connections
The B860M MAX GAMING AX motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.
WiFi 6
The WiFi 6 module is compatible with the 802.11ax. Perhaps more importantly for users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic.
USB 20Gbps port
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Customization
Personalization
The B860M MAX GAMING AX enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
Addressable Gen2 RGB headers
Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
Customization
DIY friendly
The B860M MAX GAMING AX motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
On the back of the motherboard.
Availability of ASUS AI Advisor may vary by region.
AI Advisor functions may vary by platform.
Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
Actual transmission speeds will be lower than the theoretical maximum speed.
Specifikacija
Savybės
| Pagrindinės plokštės lustas | Intel B860 |
| Produkto spalva | Pilka |
| Taikoma | PC |
| Motininės plokštės formos faktorius | „micro ATX“ |
| Garso išvesties kanalai | 7.1 kanalai |
| Aušinimo tipas | Pasyvus |
| Maitinimo šaltinio tipas | ATX |
| Motininės plokštės sisteminio valdiklio šeima | Intel |
| Palaikomos „Windows“ operacinės sistemos | Windows 10 x64/Windows 11 |
Procesorius
| Procesoriaus gamintojas | Intel |
| Procesoriaus lizdas | LGA 1851 (Socket V1) |
| Procesorių suderinamumas | Intel Core Ultra (Series 2) |
| Palaikomi procesoriaus lizdai | LGA 1851 |
Atmintis
| Palaikomi atminties tipai | DDR5-SDRAM |
| Atminties angų skaičius | 4 |
| Atminties angų tipas | DIMM |
| Atminties kanalai | Dviejų kanalų |
| ECC suderinamumas | EEB priklausančios ir nepriklausančios valstybės |
| Palaikomas atmintinės taktinis dažnis (didžiausias) | 8666 MHz |
| Maksimali vidinė atmintis | 256 GB |
| Nebuferizuota atmintis | Taip |
| Didžiausiasis vidinės atmintinės kiekis viename lizde | 64 GB |
Duomenų laikymo valdikliai
| Palaikomi saugojimo kaupiklių tipai | HDD & SSD |
| Palaikomi saugojimo kaupiklių sąsajos | PCI Express 4.0,PCI Express 5.0 |
| Palaikomų kietūjų diskų skaičius | 4 |
| Palaikomų saugojimo tvarkyklių skaičius | 7 |
| RAID palaikymas | Taip |
| RAID lygiai | 0/1/10/5 |
Grafika
| Paralelinio apdorojimo technologijos parama | Nepalaikomas |
| Maksimali rezoliucija | 3840 x 2160 pikseliai |
Vidinis I/O
| USB 2.0 jungtys | 3 |
| USB 3.2 (3.1 1 kart.) jungtys | 1 |
| USB 3.2 (3.1 2 kart.) jungtys | 1 |
| SATA III jungčių skaičius | 4 |
| S/PDIF out jungtis | Taip |
| Priekinio skydelio audio jungtis | Taip |
| Priekinės plokštės jungtis | Taip |
| ATX maitinimo jungtis | Taip |
| CPU fan jungtis | Taip |
| Centrinio procesoriaus ventiliatoriaus jungčių skaičius | 1 |
| Šasi fenų jungčių skaičius | 4 |
| Šasi intruzijos jungtis | Taip |
| EPS maitinimo jungtis (8-kaisčiai) | Taip |
| EPS maitinimo jungčių (8 kontaktų) skaičius | 1 |
| 12 V maitinimo jungtis | Taip |
| TPM jungtis | Taip |
| Vandens siurblio jungčių skaičius | 1 |
| RGB LED kontaktų pagrindas | Taip |
| RGB šviesos diodų kontaktų grupių skaičius | 3 |
Galinė panelė I/O jungtys
| USB 2.0 portų kiekis | 4 |
| USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius | 4 |
| USB 3.2 Gen 2x2 C tipo prievadų kiekis | 1 |
| Ethernet LAN (RJ-45) portų kiekis | 1 |
| „DisplayPort“ kiekis | 1 |
| „DisplayPort“ versija | 1.4 |
| Įvedimas | Taip |
| Mikrofonas, line-in jack | Taip |
| WiFi-AP antenos lizdas | 2 |
Tinklas
| Ethernet LAN jungtis | Taip |
| Eterneto sąsajos tipas | 2.5 Gigabit Ethernet |
| „Wi-Fi“ | Taip |
| „Wi-Fi“ standartas | Wi-Fi 6 (802.11ax) |
| Wi-Fi standartai | Wi-Fi 6 (802.11ax) |
| Bluetooth | Taip |
| Bluetooth versija | 5.3 |
Plėtotės lizdas
| „PCI Express x16“ (4 kartos) lizdai | 3 |
| „PCI Express x16“ („Gen 5.x“) lizdai | 1 |
| M.2 (M) angų skaičius | 3 |
| 1-ojo M.2 didžiausiasis kodą atitinkantis dydis | 2280 |
| 1-ojo M.2 naujausioji „PCI Express“ karta | 5.0 |
| 2-ojo M.2 didžiausiasis kodą atitinkantis dydis | 2280 |
| 2-ojo M.2 naujausioji „PCI Express“ karta | 4.0 |
| 3-iojo M.2 didžiausiasis kodą atitinkantis dydis | 2280 |
| 3-iojo M.2 naujausioji „PCI Express“ karta | 4.0 |
BIOS
| BIOS tipas | UEFI AMI |
| BIOS atminties dydis | 256 Mbit |
Svoris ir matmenys
Pakuotės turinys
| Pridedama antena | Taip |
| Pridėti kabeliai | SATA |
| Pridėti sraigtai | Taip |
Kitos savybės
| Greito diegimo vadovas | Taip |
