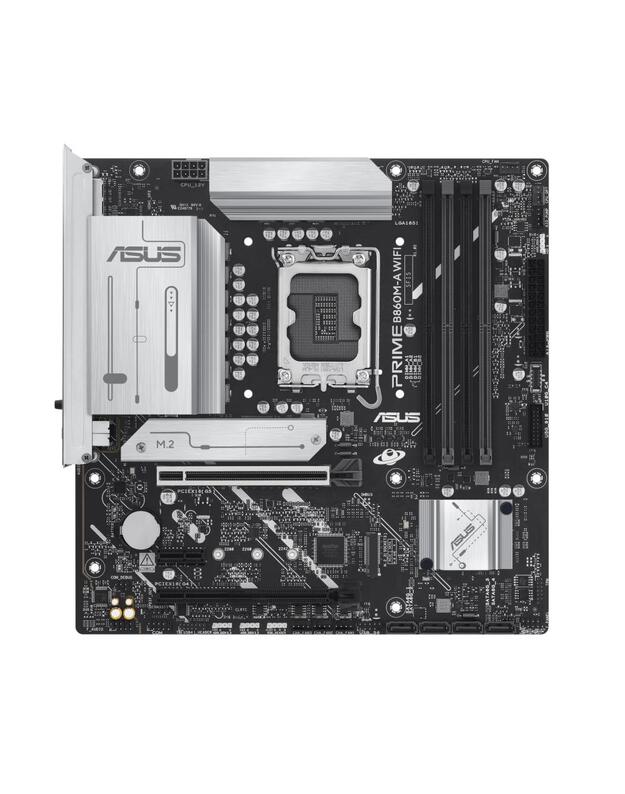

PRIME B860M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2).
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Techninė specifikacija |
| Audio port |
3 |
| Bluetooth |
Yes |
| Chipset |
Intel B860 Express |
| DisplayPort |
1 |
| Form Factor |
Micro-ATX |
| Frequency speed |
8666 |
| Full Description Line |
Intel B860 Express|LGA1851|Micro-ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|7xUSB 2.0|1xUSB-C|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|3xAudio port|USB-C|USB 2.0|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10 |
| HDMI |
1 |
| Included Accessories |
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guide |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| PCI-Express 4.0 16x |
1 |
| PCI-Express 4.0 1x |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| Shipping Box Depth |
56.8 |
| Shipping Box Height |
30 |
| Shipping Box Weight |
14.8 |
| Shipping Box Width |
36.5 |
| Shipping box quantity |
10 |
| Socket |
LGA1851 |
| Thunderbolt |
Yes |
| USB 2.0 |
Yes |
| USB-C |
Yes |
| USB-C w/Thunderbolt |
1 |
| Unit Brutto Volume |
0.00622 |
| Unit Gross Weight |
1.48 |
| Unit Net Weight |
1 |
| Vendor Homepage |
www.asus.com/motherboards-components/motherboards/prime/prime-b860m-a-wifi/ |
| WiFi |
Yes |
| iOS |
2 |
