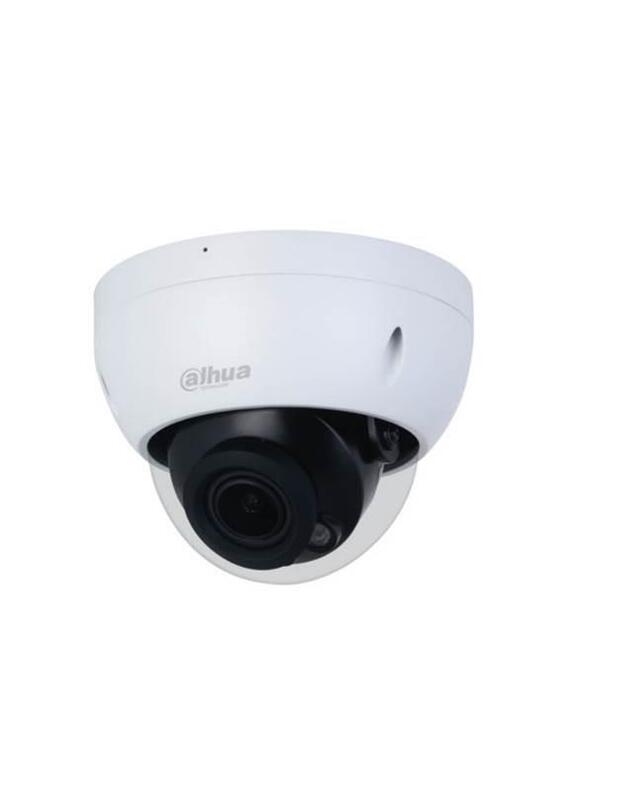

1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20FPS max
Minimum illumination: 0.008 Lux @ F1.6 color, 0.0008 lux @ F1.6 (B/W,30IRE), 0 lux (Illuminator on)
Up to 40 meters IR Illumination, Smart IR
True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR
Motorized zoom lens 2.7mm~13.5mm (104°~29°)
H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
Micro SD Card slot up to 256GB, built in 1-channel MIC
1/1 Audio I/O, 1/1 Alarm I/O
Metal case, Dome design, IP67, IK10, -30°C~+60°C, PoE / 12VDC power
General IVS Analytics: Intrusion; tripwire, SMD Plus
Free IP monitoring software available
| Techninė specifikacija |
| Audio-In |
1 |
| Audio-Out |
1 |
| Camera design |
Dome |
| Dimensions |
93.4 mm × Φ122 mm |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Environment |
Outdoor |
| Focal length |
2.7mm~13.5mm |
| Full Description Line |
Type Fixed Dome/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7mm~13.5mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions 93.4 mm × Φ122 mm |
| IR Illumination |
Yes |
| MicroSD Card Slot |
1 |
| Microphone |
Built-in |
| Min. Illumination |
0.0008 |
| Operating temperature range |
–30 °C to +60 °C |
| Pixel Resolution |
4 |
| Power supply requirements |
12 VDC/PoE (802.3af) |
| RJ45 |
1 |
| Sensor size |
1/2.9" CMOS |
| Shipping Box Depth |
16 |
| Shipping Box Height |
14 |
| Shipping Box Weight |
0.68 |
| Shipping Box Width |
16 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
256GB |
| Unit Brutto Volume |
0.003584 |
| Unit Gross Weight |
0.68 |
| Unit Net Weight |
0.52 |
| Vendor Homepage |
www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441R-ZAS |
| iOS |
12V/PoE |
