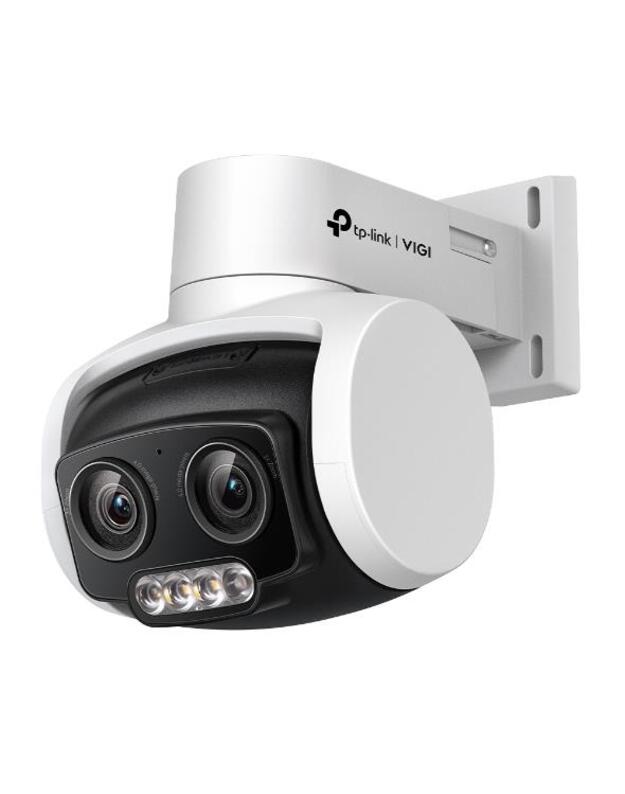

VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
| Techninė specifikacija |
| Camera design |
PT/PTZ |
| Colour |
White |
| Dimensions |
107× 136× 139 mm |
| Electronic Shutter Speed |
1/3 to 1/10000 s |
| Environment |
Outdoor |
| Focal length |
4-12 mm |
| Full Description Line |
Type Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4-12 mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories|Colour White|Dimensions 107× 136× 139 mm |
| IR Illumination |
Yes |
| Included Accessories |
Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories |
| Microphone |
Built-in |
| Min. Illumination |
0.005 |
| Operating temperature range |
-30–60 °C |
| Pixel Resolution |
4 |
| Power supply requirements |
12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| RJ45 |
1 |
| Sensor size |
1/3” Progressive Scan CMOS |
| Shipping Box Depth |
19 |
| Shipping Box Height |
16 |
| Shipping Box Weight |
0.7 |
| Shipping Box Width |
15 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
256GB |
| Unit Brutto Volume |
0.00456 |
| Unit Gross Weight |
0.7 |
| Unit Net Weight |
0.43 |
| Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540v/ |
| iOS |
12V/PoE |
