> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960×1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm–13.5 mm. Field of View 113°–36°
| Techninė specifikacija |
| AV-In |
1 |
| AV-out |
1 |
| Alarm In |
1 |
| Alarm Out |
1 |

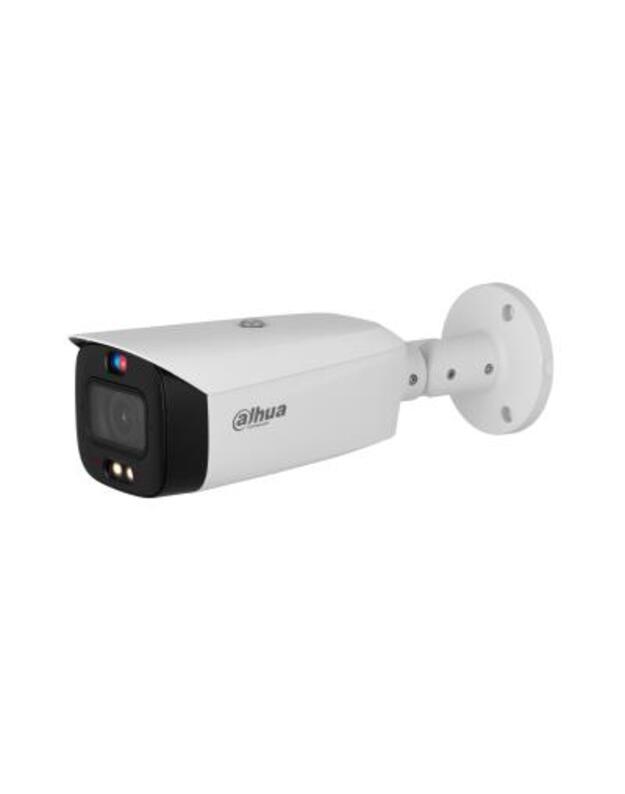

| Camera design |
Bullet |
| Colour |
White |
| Dimensions |
288.4 mm × 94.4 mm × 84.7 mm |
| Effective pixels |
2960 (H) × 1668 (V) |
| Electronic Shutter Speed |
Auto/Manual |
| Environment |
Outdoor |
| Focal length |
2.7 mm–13.5 mm |
| IR Illumination |
Yes |
| Lens Mount |
M12 |
| Microphone |
Built-in |
| Min. Illumination |
0 |
| Operating temperature range |
–30 °C to +60 °C |
| Pixel Resolution |
5 |
| Power consumption |
3 |
| Power supply requirements |
12 VDC/PoE (802.3af) |
| RJ45 |
1 |
| Sensor size |
1/2.7" |
| Supports card capacities up to |
512GB |
| Vendor Homepage |
www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2549S-S-IL |
| iOS |
12V/PoE |
