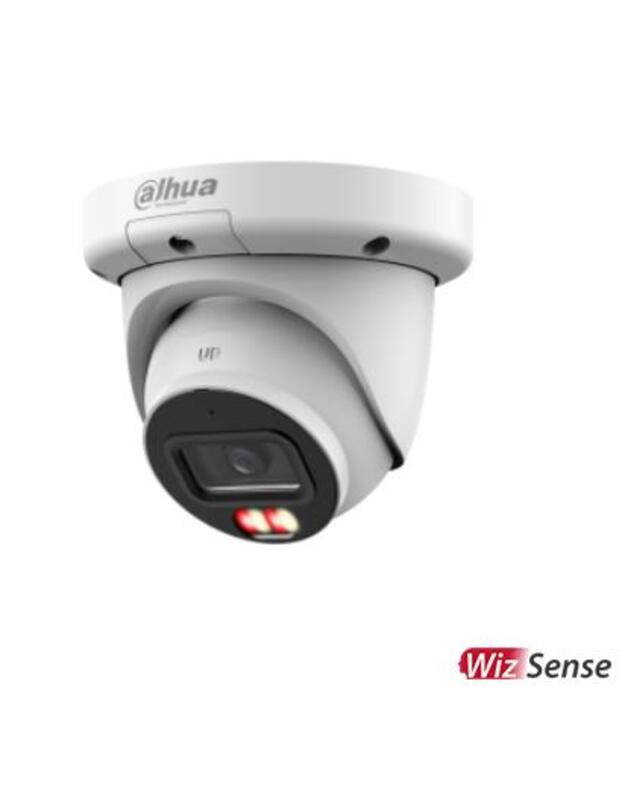

> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 ×1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°
| Techninė specifikacija |
| Camera design |
Eyeball |
| Colour |
White |
| Dimensions |
105.5 mm × Φ122.0 mm |
| Effective pixels |
3288 (H) × 1850 (V) |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Environment |
Outdoor |
| Focal length |
2.8 mm |
| Lens Mount |
M12 |
| Microphone |
Built-in |
| Min. Illumination |
0 |
| Operating temperature range |
–40 °C to +60 °C |
| Pixel Resolution |
6 |
| Power consumption |
10 |
| Power supply requirements |
12 VDC/PoE (802.3af) |
| RJ45 |
1 |
| Sensor size |
1/2.7" |
| Supports card capacities up to |
512GB |
| Vendor Homepage |
www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDW3649QM-S-IL |
| iOS |
12V/PoE |
