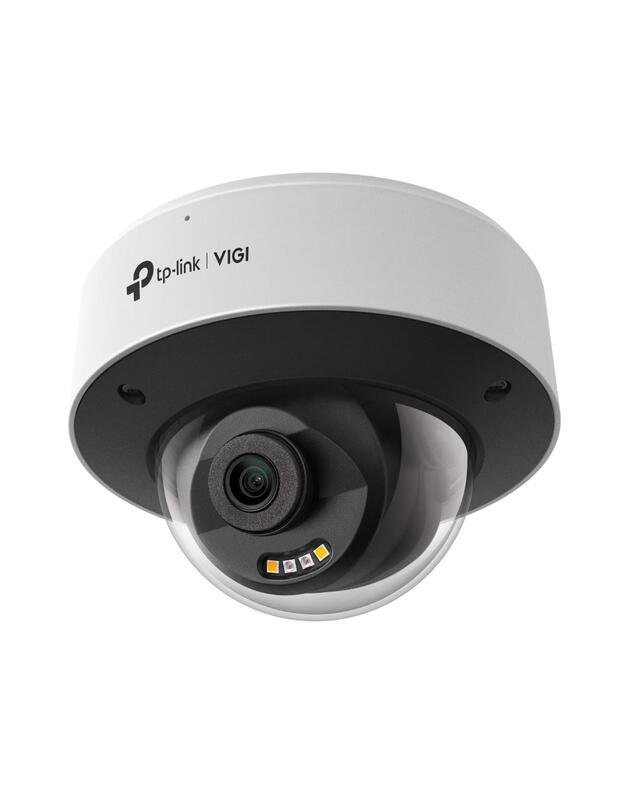

VIGI 4MP Full-Color Dome Network Camera
4MP Super-High Definition and 24h Full-Color
People & Vehicle Analytics†
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof and IK10 Vandal-Proof
H.265+ Compression Technology
| Techninė specifikacija |
| Camera design |
Dome |
| Dimensions |
122 × 122 × 89 mm |
| Electronic Shutter Speed |
1/3 to 1/10000 s |
| Environment |
Outdoor |
| Focal length |
2.8 mm |
| Full Description Line |
Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|Sensor size 1/2.7”|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.52 W|Environment Outdoor|Operating temperature range -30–60 °C|Dimensions 122 × 122 × 89 mm |
| Min. Illumination |
0.005 |
| Operating temperature range |
-30–60 °C |
| Pixel Resolution |
4 |
| Power consumption |
12.52 |
| Power supply requirements |
12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.52 W |
| RJ45 |
1 |
| Sensor size |
1/2.7” |
| Shipping Box Depth |
16 |
| Shipping Box Height |
16 |
| Shipping Box Weight |
0.909 |
| Shipping Box Width |
16 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
512GB |
| Unit Brutto Volume |
0.004096 |
| Unit Gross Weight |
0.909 |
| Unit Net Weight |
0.62 |
| Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-camera/insight-s245/v1%20(2.8mm%20lens)/ |
| iOS |
12V/PoE |
