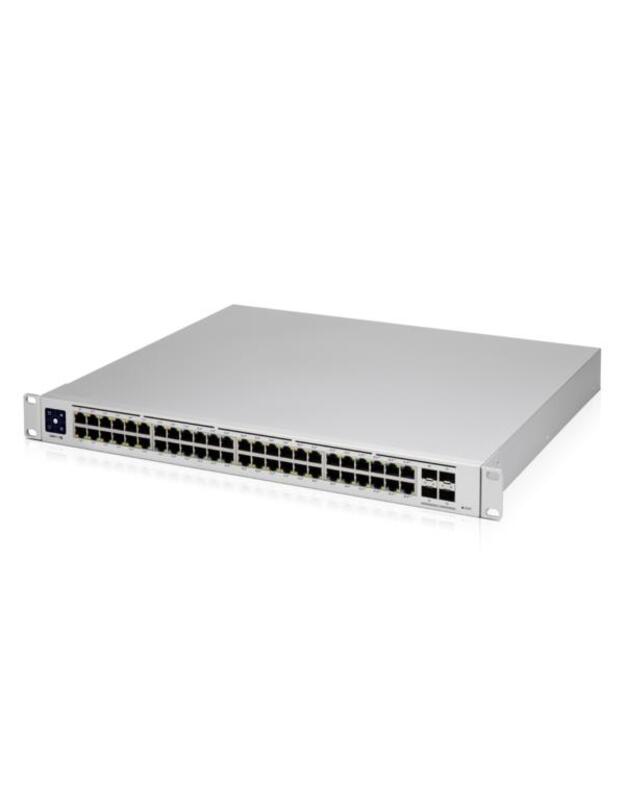

48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.
The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
| Techninė specifikacija |
| 10Base-T / 100Base-TX / 1000Base-T |
48 |
| Activity |
Yes |
| Dimensions |
442.4 x 285 x 43.7 mm |
| Forwarding rate |
77.38 |
| Full Description Line |
Type L2|48x10Base-T / 100Base-TX / 1000Base-T|1xSFP|PoE power budget 32 Watts|Unit Net Weight 4.61 kg |
| Link |
Yes |
| Model name |
USW-48-POE |
| PoE ports |
32 |
| PoE power budget |
32 |
| Primary port count |
48 |
| Rack |
Yes |
| SFP |
1 |
| Shipping Box Depth |
54 |
| Shipping Box Height |
43 |
| Shipping Box Weight |
12.55 |
| Shipping Box Width |
26 |
| Shipping box quantity |
2 |
| Switch type |
L2 |
| Switching capacity |
104 |
| Unit Brutto Volume |
0.03019 |
| Unit Gross Weight |
6.28 |
| Unit Net Weight |
4.61 |
| Vendor Homepage |
store.ui.com/collections/unifi-network-routing-switching/products/usw-48-poe |
