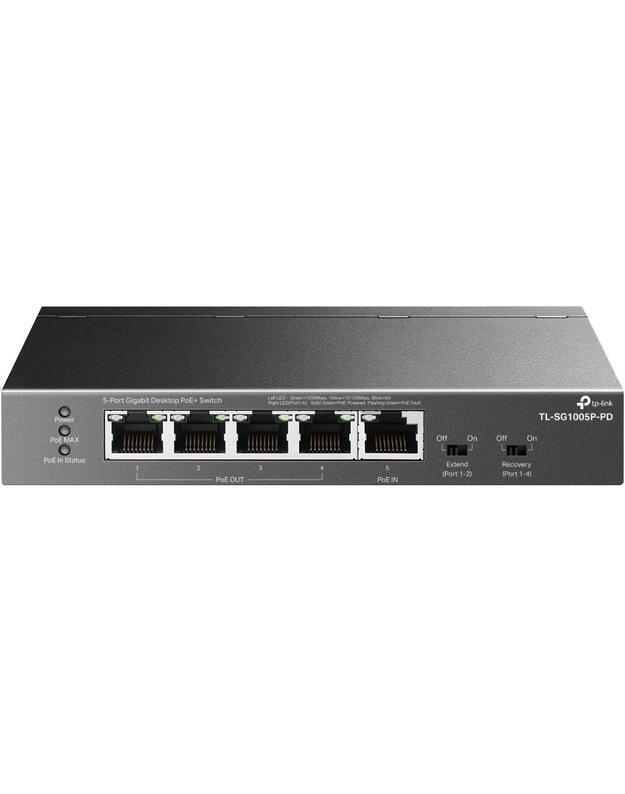

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
| Techninė specifikacija |
| 10Base-T / 100Base-TX / 1000Base-T |
5 |
| Desktop/pedestal |
Yes |
| Dimensions |
158 × 101 × 25 mm |
| Forwarding rate |
7.44 |
| Full Description Line |
Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 158 × 101 × 25 mm|Unit Net Weight 0.3 kg |
| Model name |
TL-SG1005P-PD |
| PoE ports |
5 |
| Primary port count |
5 |
| Shipping Box Depth |
19.5 |
| Shipping Box Height |
5 |
| Shipping Box Weight |
0.5 |
| Shipping Box Width |
13 |
| Shipping box quantity |
1 |
| Switching capacity |
10 |
| Unit Brutto Volume |
0.001267 |
| Unit Gross Weight |
0.5 |
| Unit Net Weight |
0.3 |
| Vendor Homepage |
www.tp-link.com/au/business-networking/unmanaged-switch/tl-sg1005p-pd/ |
