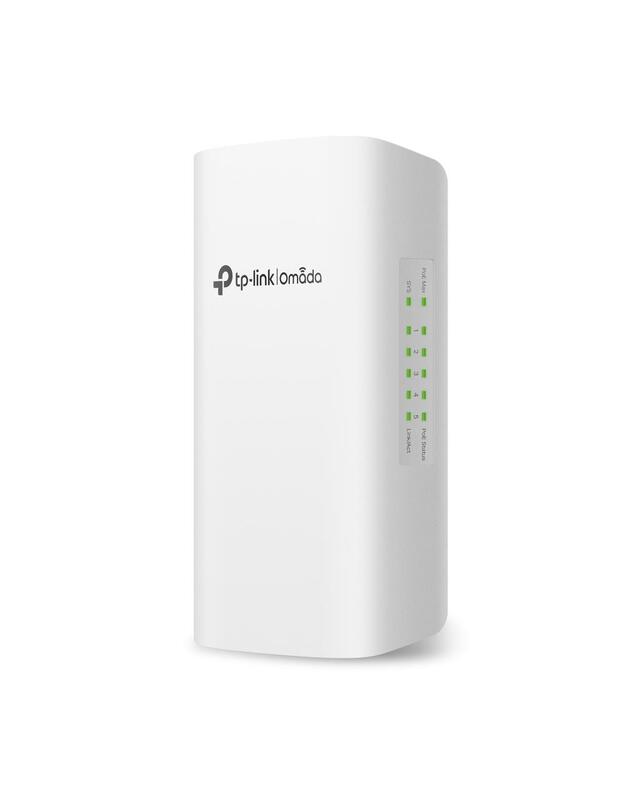

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
| Techninė specifikacija |
| 10Base-T / 100Base-TX / 1000Base-T |
5 |
| Desktop/pedestal |
Yes |
| Dimensions |
100 × 38.5 × 170 mm |
| Forwarding rate |
7.44 |
| Full Description Line |
Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 1|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 100 × 38.5 × 170 mm|Unit Net Weight 0.3 kg |
| Model name |
SG2005P-PD |
| PoE ports |
1 |
| Primary port count |
5 |
| Shipping Box Depth |
21 |
| Shipping Box Height |
7 |
| Shipping Box Weight |
0.5 |
| Shipping Box Width |
21 |
| Shipping box quantity |
1 |
| Switching capacity |
10 |
| Unit Brutto Volume |
0.003087 |
| Unit Gross Weight |
0.5 |
| Unit Net Weight |
0.3 |
| Vendor Homepage |
www.tp-link.com/sg/business-networking/omada-sdn-switch/sg2005p-pd/ |
