Switch Aggregation
Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.

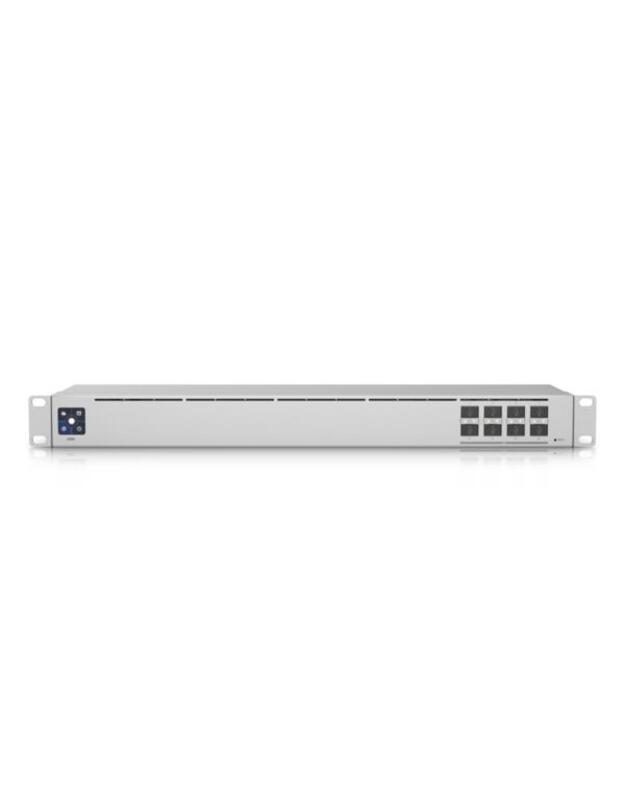

The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Features:
(8) 10G SFP+ Ports
160 Gbps switching capacity
1.3" Touchscreen with AR switch management
Fanless, 4.7" depth compact enclosure
1U Rackmountable (kit included)
Managed with UniFi Network Application Version: 5.14.12 or higher.
| Techninė specifikacija |
| Dimensions |
442.4 x 120 x 43.7 mm |
| Full Description Line |
Type L2|Rack 1U|8xSFP+|8xSFP+|Switching capacity 160 Gbps|Dimensions 442.4 x 120 x 43.7 mm|Unit Net Weight 2.65 kg |
| Model name |
USW-Aggregation |
| Primary port count |
8 |
| Rack 1U |
Yes |
| SFP |
8/8 |
| Shipping Box Depth |
53.6 |
| Shipping Box Height |
26.3 |
| Shipping Box Weight |
3.78 |
| Shipping Box Width |
13 |
| Shipping box quantity |
1 |
| Switch type |
L2 |
| Switching capacity |
160 |
| Unit Brutto Volume |
0.01833 |
| Unit Gross Weight |
3.78 |
| Unit Net Weight |
2.65 |
| Vendor Homepage |
store.ui.com/collections/unifi-network-switching/products/unifi-switch-aggregation |
