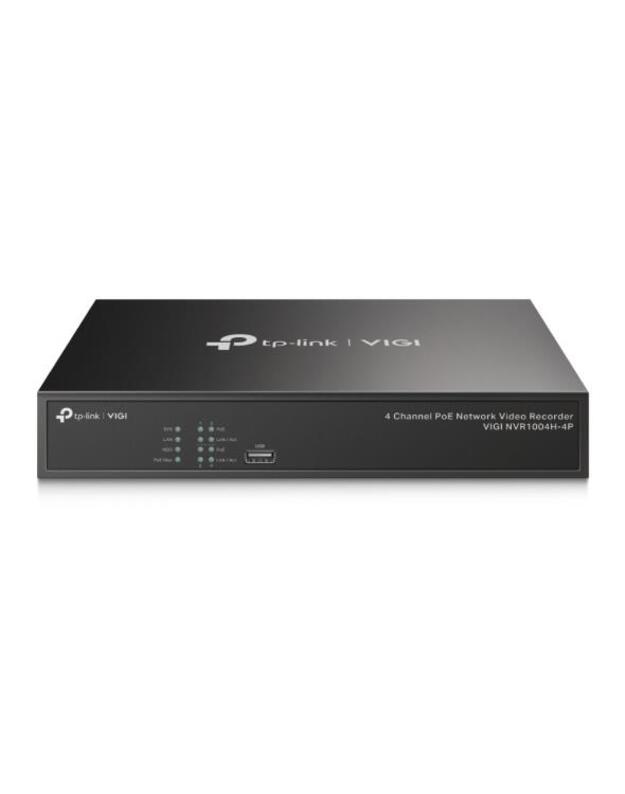

VIGI 4 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Dimensions |
246.2 × 148.2 × 45 mm |
| Full Description Line |
Channels 4|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Included Accessories Power Adapter;HDD Screws;Mouse;Quick Installation Guide|Power supply requirements 53.5V DC/1.31A|Power consumption 4.25 Watts|Dim. 246.2 × 148.2 × 45 mm|Temp. range -10–55 °C |
| HDMI |
1 |
| Included Accessories |
Power Adapter;HDD Screws;Mouse;Quick Installation Guide |
| Number of channels |
4 |
| Operating temperature range |
-10–55 °C |
| PoE ports |
4 |
| Power consumption |
4.25 |
| Power supply requirements |
53.5V DC/1.31A |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
37 |
| Shipping Box Height |
6.5 |
| Shipping Box Weight |
1.5 |
| Shipping Box Width |
28.5 |
| Shipping box quantity |
1 |
| USB 2.0 |
2 |
| Unit Brutto Volume |
0.006854 |
| Unit Gross Weight |
1.5 |
| Unit Net Weight |
1 |
| Vendor Homepage |
www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1004h-4p/ |
