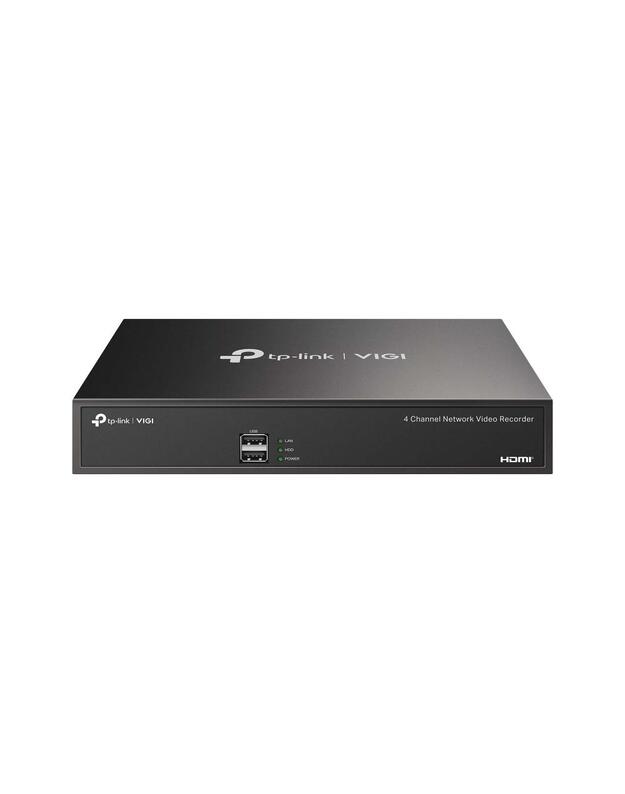

VIGI 4 Channel Network Video Recorder
4-Channel Live View and 4K HDMI Video Output
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
4-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
1 SATA Interface (up to 10 TB) *
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Desktop/pedestal |
Yes |
| Dimensions |
246.2 × 148.2 × 45 mm |
| Full Description Line |
Channels 4|Desktop/pedestal|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Included Accessories Power Adapter,HDD Screws,Mouse,Rubber Feet,Quick Installation Guide|Power supply requirements DC 12V/1.5A|Power consumption 4.25 Watts|Dim. 246.2 × 148.2 × 45 mm|Temp. range -10–55 °C |
| HDMI |
1 |
| Included Accessories |
Power Adapter,HDD Screws,Mouse,Rubber Feet,Quick Installation Guide |
| Number of channels |
4 |
| Operating temperature range |
-10–55 °C |
| Power consumption |
4.25 |
| Power supply requirements |
DC 12V/1.5A |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
30 |
| Shipping Box Height |
27 |
| Shipping Box Weight |
1.109 |
| Shipping Box Width |
6 |
| Shipping box quantity |
1 |
| USB 2.0 |
2 |
| Unit Brutto Volume |
0.00486 |
| Unit Gross Weight |
1.109 |
| Unit Net Weight |
0.59 |
| Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr1004h/ |
