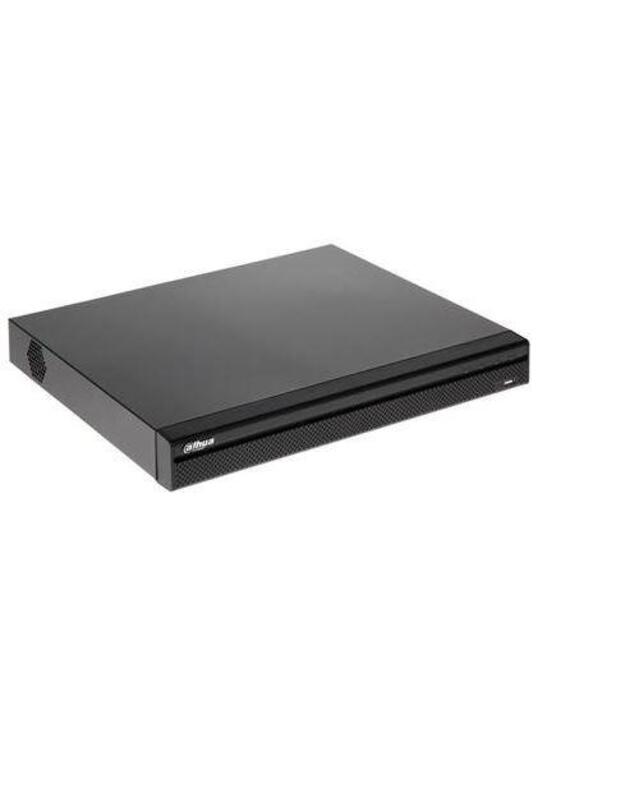

The NVR supports ePoE and EoC technology for use in a broad range of application scenarios. ePoE technology simplifies the network structure of long-range surveillance projects, eliminating the requirement for extra network repeater devices, making the system more reliable and easy to deploy. EoC technology makes it possible to upgrade existing systems to high definition IP surveillance while using existing coax cables.
•8 IP channel max, up to 12MP resolution
•Max 12MP, Record Rate up to 20Mbps Per Channel
•VGA/HDMI up to 3840x2160 output
•Dual-stream, 8-ch synchronous playback
•2 SATA interface up to 20TB total, Gigabit LAN
•PoE: 8 ports (IEEE802.3af/at), All ports support ePoE & EoC, 25.5W for single port, 130W total rated power
•No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB
•1U 19” chassis, mouse included
•Free IP monitoring software available
•Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc., ONVIF Version 2.4 conformance
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Alarm In |
4 |
| Alarm Out |
2 |
| Desktop/pedestal |
Yes |
| Dimensions |
375x 326.5 x 53mm |
| Full Description Line |
Channels 8|Drives/bays 2|Desktop/pedestal|SATA|USB 2.0|1x15pin D-sub|1xHDMI|1xRS232|2xUSB 2.0|1xRJ45|1xRS-485|4xAlarm In|2xAlarm Out|Power supply requirements Single, AC100V ~ 240V, 50 ~ 60 Hz|Power consumption 15.2 Watts|Dim. 375x 326.5 x 53mm|Temp. range -10°C ~ +55°C |
| HDMI |
1 |
| Number of channels |
8 |
| Operating temperature range |
-10°C ~ +55°C |
| PoE ports |
8 |
| Power consumption |
15.2 |
| Power supply requirements |
Single, AC100V ~ 240V, 50 ~ 60 Hz |
| RJ45 |
1 |
| RS-485 |
1 |
| RS232 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
44.5 |
| Shipping Box Height |
42 |
| Shipping Box Weight |
4.15 |
| Shipping Box Width |
17 |
| Shipping box quantity |
1 |
| USB 2.0 |
2 |
| Unit Brutto Volume |
0.03177 |
| Unit Gross Weight |
4.15 |
| Unit Net Weight |
2.7 |
| Vendor Homepage |
www.dahuasecurity.com/products/productDetail/22047 |
| iOS |
2 |
