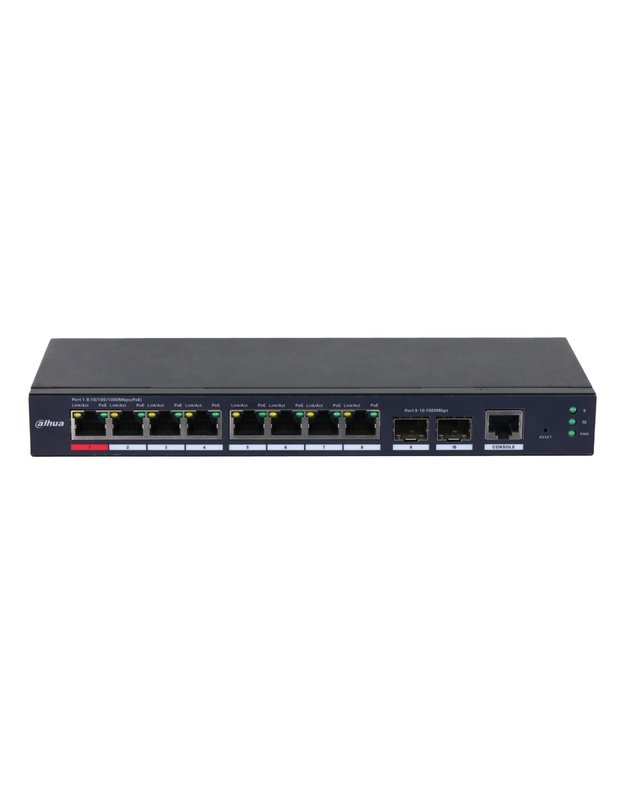

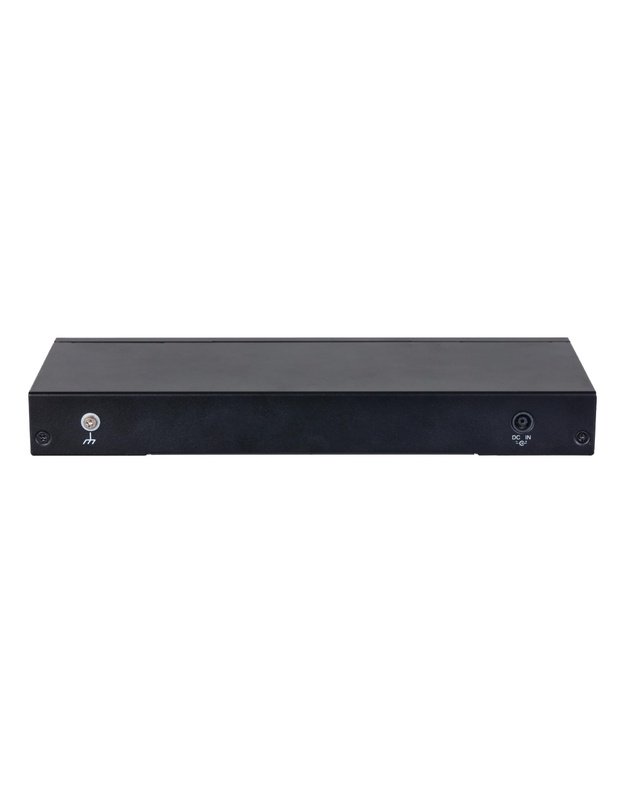

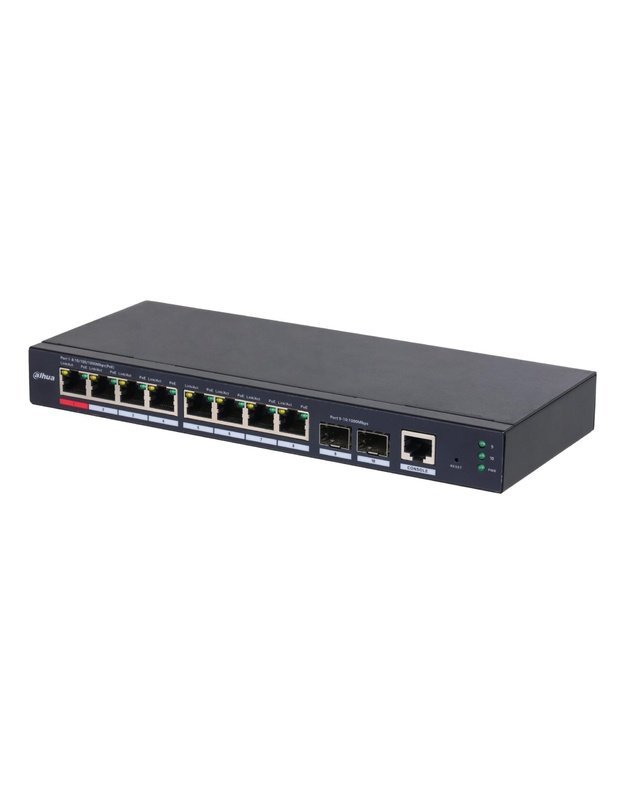

Switch|DAHUA|S4210-8GT-110|Switch type Managed|Switch layer L2|Form factor Desktop/Wall-Mounting|8xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|2xFiber uplink ports quantity|Power over Ethernet (PoE) Yes|8xPower over Ethernet (PoE) ports qu

Equipped with a high performance switching engine, the 8 Port PoE All-Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable.It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design, the device has great heat dissipation and is low power consumption, working in environments ranging from – 10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also has powerful network management functions, supporting various types of web and network management software based on SNMP.

PoE Watchdog
Adopt the innovative PoE Watchdog, can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirement of long-ranged wired transmission (bandwidth reduced to 10 Mbps).

BT 90W (Red Port)
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

Wide Operating Temperature
Supports working at ambient temperatures of –10 °C to +55 °C, and has built-in professional lightning-proof circuits that effectively reduce the impact of thunderstorms on network systems and improve system robustness, allowing the device to adapt to harsh environments.

Intelligent PoE
Provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change. Supports ultra wide power supply, able to adapt to IPC power fluctuation.

Minimal WEB
Designed with a minimalist graphical WEB, easy to operate, which improves configuration efficiency.

• Layer 2 network management PoE switch
• IEEE802.3af, IEEE802.3at standard. Port 1 supports IEEE802.3bt, and is compatible with Hi-PoE
• PoE watchdog
• 250 m long-distance transmission mode
• Network redundancy: STP/RSTP
• Static link aggregation and LACP
• EMC high protection design
• Desktop and wall-mounted installation

Specifikacija

Valdymo funkcijos

Ryšys

Tinklas

Šviesolaidis

Duomenų perdavimas

Saugumas

Transliavimo grupiniu adresu ypatybės

Konstrukcija

Veikimo charakteristikos

Energijos valdymas

„Power over Ethernet“ (PoE)

Aplinkos sąlygos

Svoris ir matmenys

Pakuotės turinys

Pakuotės duomenys

Sertifikatai
