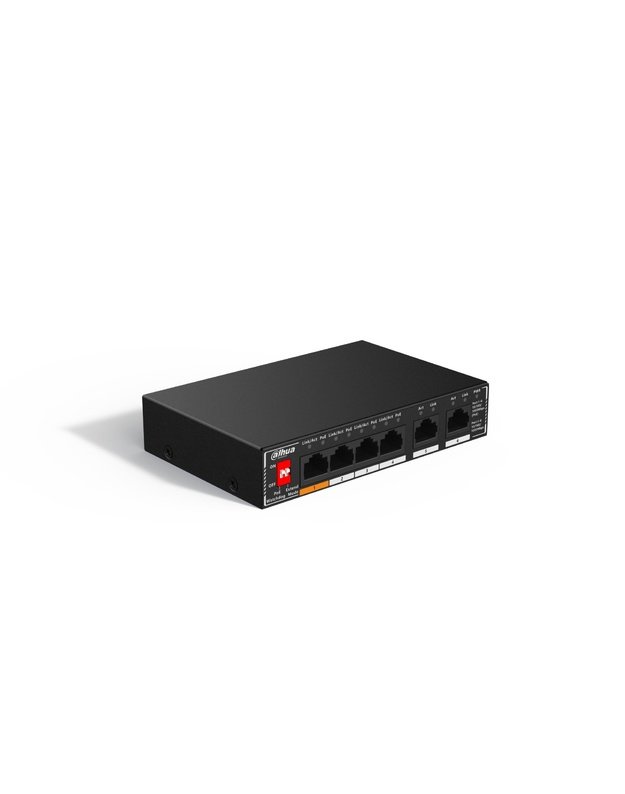

Switch|DAHUA|SG1006P|Switch type Unmanaged|6xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|6xGigabit Ethernet (copper) ports quantity|Power over Ethernet (PoE) Yes|4xPower over Ethernet (PoE) ports quantity|Total Power over Ethernet (PoE) bu
Switch|DAHUA|SG1006P|Switch type Unmanaged|6xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|6xGigabit Ethernet (copper) ports quantity|Power over Ethernet (PoE) Yes|4xPower over Ethernet (PoE) ports quantity|Total Power over Ethernet (PoE) bu
Dahua Technology PoE SG1006P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 14 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable
€3982 €5299 su PVM
Sutaupote -
€1317
| Garantija: |
36 |
| Gamintojas: |
DAHUA |
DH-SG1006P is an unmanaged Desktop Switch with 4 × 10/100/1000 Mbps PoE Ports. It provides 4 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
8-pin Assignment PoE Power Supply
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.
Compatibility with IPC is enhanced. Cable loss is reduced. Loading
capacity is increased.
- Intelligent PoE
- Hi-PoE 60W (orange port)
- Long distance PoE
- PoE watchdog
- All-gigabit PoE ports
- Wide working temperature
Specifikacija
Valdymo funkcijos
| Perjungimo tipas | Ne-valdomas |
Ryšys
| Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius | 6 |
| Pagrindinių perjungimo RJ-45 eterneto prievadų tipas | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (varinis) portų kiekis | 6 |
| Aukštynkryčio ryšio prievadų skaičius | 2 |
Tinklas
| Tinklo standartai | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x |
| 10G parama | Ne |
| Srauto kontrolės palaikymas | Taip |
Duomenų perdavimas
| Perjungimo pajėgumas | 14 Gbit/s |
| Persiuntimo dažnis | 8.928 Mpps |
| Adreso lentelės dydis | 2000 įrašai |
| Paketo buferio atmintis | 1 MB |
Konstrukcija
| Produkto spalva | Juoda |
| Montuojamas ant sienos | Taip |
Energijos valdymas
| Maitinimo šaltinis | DC/PoE |
| DC įėjimo įtampa | 48 - 57 V |
| Įėjimo įtampa | 57 V |
| Galios suvartojimas (maks.) | 60 W |
„Power over Ethernet“ (PoE)
| Maitinimas per Eternetą (PoE) | Taip |
| Maitinimo per Eternetą (PoE) prievadų skaičius | 4 |
| Bendrosios galios per Eternetą (PoE) charakteriskos | 60 W |
Aplinkos sąlygos
| Darbo temperatūros diapazonas (TT) | -10 - 55 °C |
| Darbo santykinės drėgmės diapazonas | 5 - 95 % |
Svoris ir matmenys
| Plotis | 85 mm |
| Ilgis | 130 mm |
| Aukštis | 26 mm |
| Svoris | 300 g |
