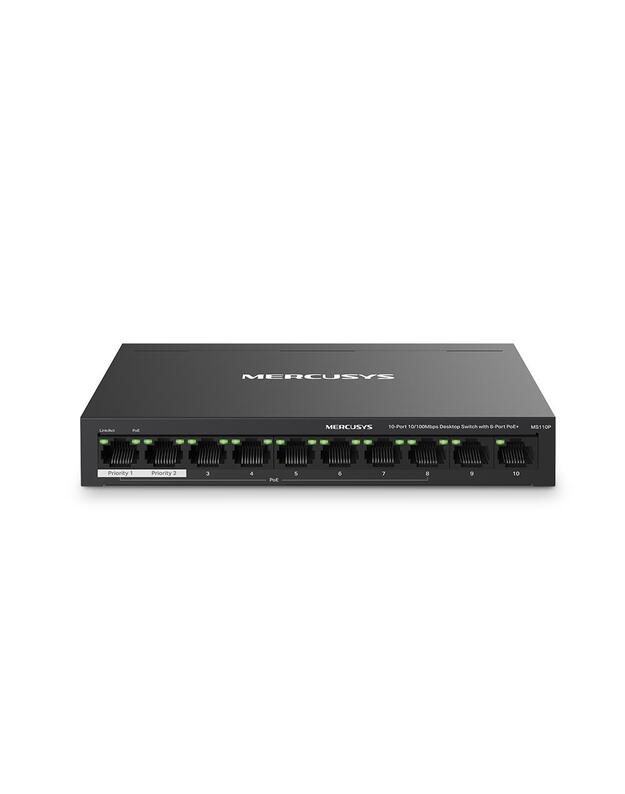

MS110P
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
|
| Desktop/pedestal |
Yes |
| Dimensions |
171x98x27mm |
| Full Description Line |
Desktop/pedestal|10x10Base-T / 100Base-TX|IEEE 802.3af|IEEE 802.3at|IEEE 802.3x|PoE+ ports 8|Dimensions 171x98x27mm|Unit Net Weight 0.6 kg |
| IEEE 802.3af |
Yes |
| IEEE 802.3at |
Yes |
| IEEE 802.3x |
Yes |
| Included Accessories |
Switch; Power Adapter; Installation Guide |
| Model name |
MS110P |
| PoE ports |
8 |
| Primary port count |
10 |
| Shipping Box Depth |
40 |
| Shipping Box Height |
28 |
| Shipping Box Weight |
10.3 |
| Shipping Box Width |
27 |
| Shipping box quantity |
12 |
| Unit Brutto Volume |
0.00252 |
| Unit Gross Weight |
0.858 |
| Unit Net Weight |
0.6 |
| Vendor Homepage |
www.mercusys.com/en/product/details/ms110p |
| eSATA |
10 |
