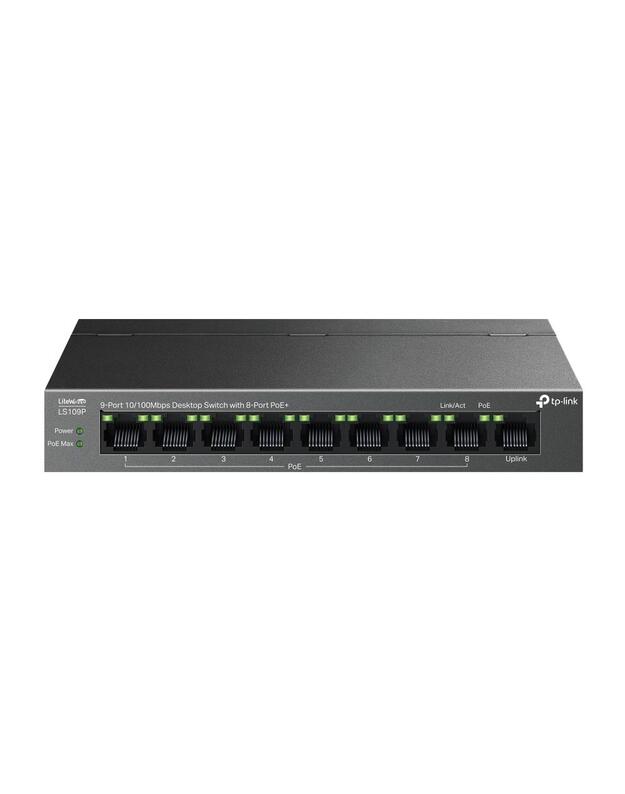

LS109P
9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| Techninė specifikacija |
| Desktop/pedestal |
Yes |
| Dimensions |
171×98×27 mm |
| Forwarding rate |
1.3392 |
| Full Description Line |
Desktop/pedestal|9x10Base-T / 100Base-TX|IEEE 802.3af|IEEE 802.3at|IEEE 802.3x|PoE+ ports 8|Switching capacity 1.8 Gbps|Forwarding rate 1.3392 Mpps|Link|Power|Power supply External|Dimensions 171×98×27 mm|Unit Net Weight 0.6 kg |
| IEEE 802.3af |
Yes |
| IEEE 802.3at |
Yes |
| IEEE 802.3x |
Yes |
| Link |
Yes |
| Model name |
LS109P |
| PoE ports |
8 |
| Power |
Yes |
| Power supply |
External |
| Shipping Box Depth |
28 |
| Shipping Box Height |
22.5 |
| Shipping Box Weight |
0.9 |
| Shipping Box Width |
7 |
| Shipping box quantity |
1 |
| Switching capacity |
1.8 |
| Unit Brutto Volume |
0.00441 |
| Unit Gross Weight |
0.9 |
| Unit Net Weight |
0.6 |
| Vendor Homepage |
www.tp-link.com/za/business-networking/soho-switch-poe/ls109p/ |
| eSATA |
9 |
