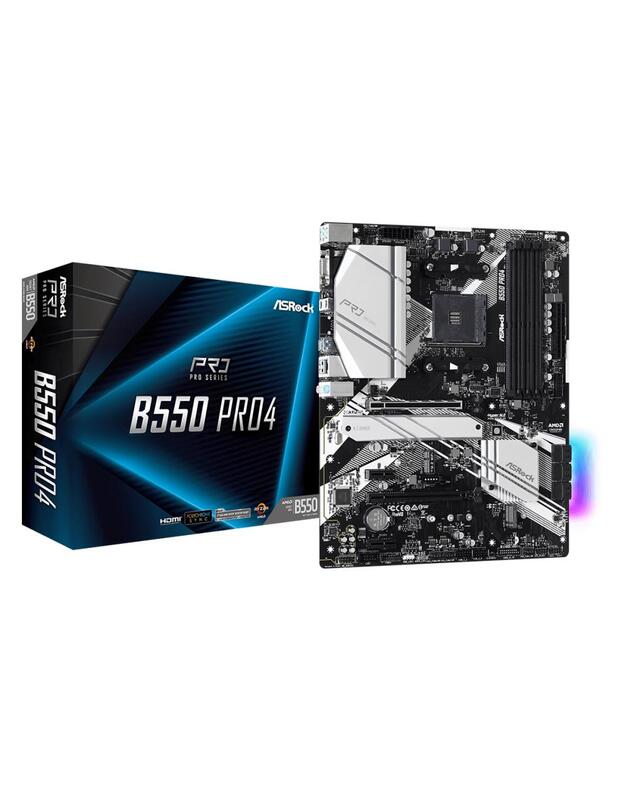

Mainboard|ASROCK|AMD B550|SAM4|ATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550PRO4
Mainboard|ASROCK|AMD B550|SAM4|ATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550PRO4
AMD B550 | SAM4 | ATX | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 2xM.2 | 1xPCI-Express 4.0 16x | DDR4 | 4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2667/2400/2133 MHz | Memory slots 4 | 1x15pin D-sub | 1xHDMI | 1xUSB type C | 5xUSB 3.2 | 1xPS/2 | 1xRJ45 | 3xAudio port | USB 2.0 | USB 3.2 | Serial | SATA 3.0 | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10
| Warranty: |
36 |
| Manufacturer: |
ASROCK |
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, D-Sub
- AMD CrossFireX
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
| Technical specification |
| 15pin D-sub |
1 |
| Audio port |
3 |
| Chipset |
AMD B550 |
| Form Factor |
ATX |
| Frequency speed |
4466 |
| Full Description Line |
AMD B550|SAM4|ATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 4|1x15pin D-sub|1xHDMI|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10 |
| HDMI |
1 |
| Included Accessories |
- Quick Installation Guide, Support CD, I/O Shield;- 2 x SATA Data Cables;- 3 x Screws for M.2 Sockets;- 1 x Standoff for M.2 Socket |
| Integrated LAN |
Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR4 |
| PCI-Express 3.0 1x |
2 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA 3.0 |
Yes |
| Serial |
Yes |
| Shipping Box Depth |
89 |
| Shipping Box Height |
36 |
| Shipping Box Weight |
20 |
| Shipping Box Width |
40 |
| Shipping box quantity |
10 |
| Socket |
SAM4 |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB type C |
1 |
| USB-C |
1 |
| Unit Brutto Volume |
0.01282 |
| Unit Gross Weight |
2 |
| Unit Net Weight |
1.5 |
| Vendor Homepage |
www.asrock.com/mb/AMD/B550%20Pro4/ |
| iOS |
2 |
