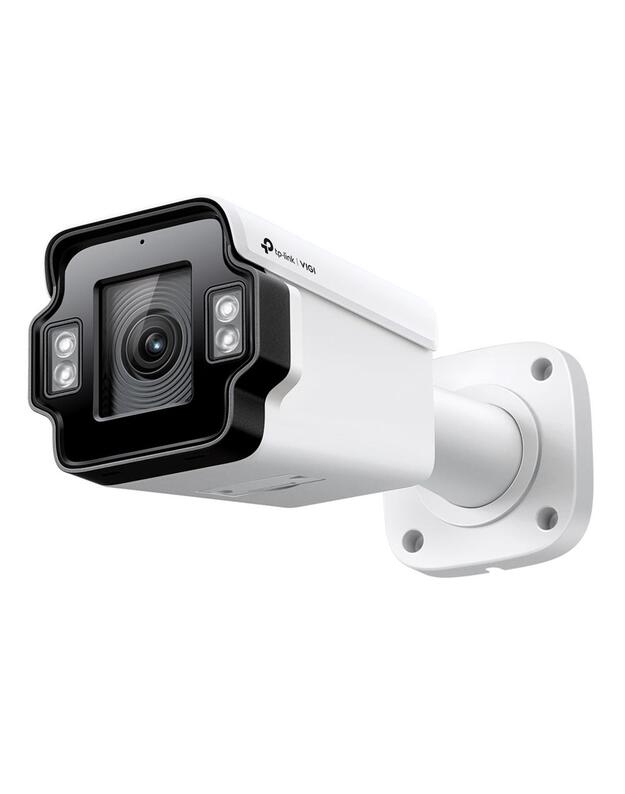

VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
5X Optical Zoom for Easy Installation and Monitoring
4MP Super-High Definition and IR Range Up to 60m (197ft)
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP67 Weatherproof and IK10 Vandal Proof
H.265+ Compression Technology
| Technical specification |
| Audio-In |
1 |
| Audio-Out |
1 |
| Camera design |
Bullet |
| Dimensions |
256 × 100 × 101 mm |
| Environment |
Outdoor |
| Focal length |
2.7-13.5 mm |
| Full Description Line |
Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7-13.5 mm|Sensor size 1/2.9”|Lens Mount M14|Min. Illumination 0.005 Lux|1xAudio-In|1xAudio-Out|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max.12 W|Environment Outdoor|Operating temperature range -30–60 °C|Dimensions 256 × 100 × 101 mm |
| Lens Mount |
M14 |
| Min. Illumination |
0.005 |
| Operating temperature range |
-30–60 °C |
| Pixel Resolution |
4 |
| Power consumption |
12 |
| Power supply requirements |
12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max.12 W |
| RJ45 |
1 |
| Sensor size |
1/2.9” |
| Shipping Box Depth |
30.5 |
| Shipping Box Height |
13.5 |
| Shipping Box Weight |
1.451 |
| Shipping Box Width |
16 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
512GB |
| Unit Brutto Volume |
0.006588 |
| Unit Gross Weight |
1.45 |
| Unit Net Weight |
1.04 |
| Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-camera/insight-s345zi/ |
| iOS |
12V/PoE |
