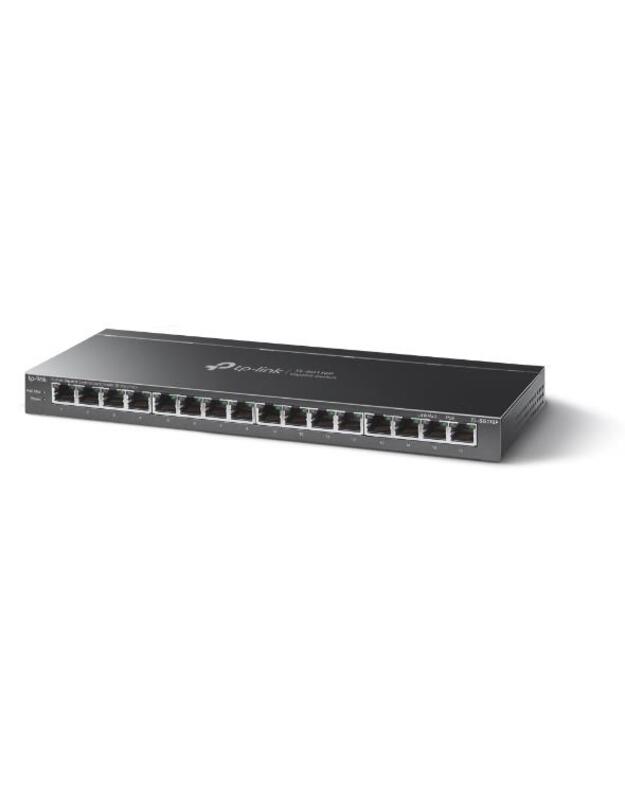

NET SWITCH 16PORT 1000M POE+/TL-SG116P TP-LINK
NET SWITCH 16PORT 1000M POE+/TL-SG116P TP-LINK
16-Port Gigabit Desktop Switch with 16-Port PoE+
- 120 W PoE Budget : 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W*.
- Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
- Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and Play: Plug and play with no configuration required
| Technical specification |
| Dimensions |
286 × 111.7 × 25.4 mm |
| Forwarding rate |
23.8 |
| Full Description Line |
IEEE 802.3af|IEEE 802.3at|PoE+ ports 16|Switching capacity 32 Gbps|Forwarding rate 23.8 Mpps|Switching method Store-and-forward|Dimensions 286 × 111.7 × 25.4 mm|Unit Net Weight 0.94 kg |
| IEEE 802.3af |
Yes |
| IEEE 802.3at |
Yes |
| Included Accessories |
TL-SG116P, Power supply, Installation instructions |
| PoE ports |
16 |
| Primary port count |
16 |
| Shipping Box Depth |
43.5 |
| Shipping Box Height |
23 |
| Shipping Box Weight |
2.011 |
| Shipping Box Width |
7 |
| Shipping box quantity |
1 |
| Switching capacity |
32 |
| Switching method |
Store-and-forward |
| Unit Brutto Volume |
0.007004 |
| Unit Gross Weight |
2.01 |
| Unit Net Weight |
0.94 |
| Vendor Homepage |
www.tp-link.com/us/business-networking/unmanaged-switch/tl-sg116p/ |
