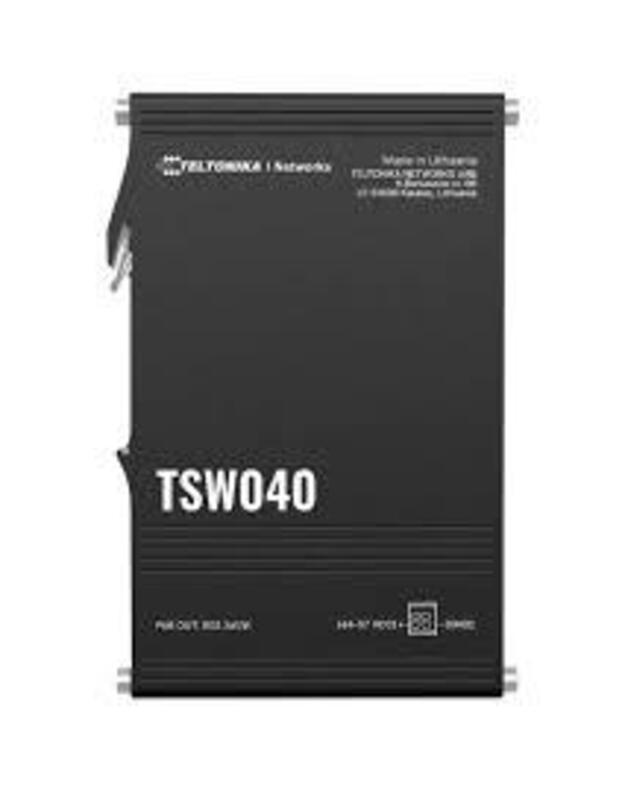

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
| Technical specification |
| Dimensions |
113.1 x 41.2 x 74.6 mm |
| Full Description Line |
8xRJ45|PoE+ ports 8|PoE power budget 240 Watts|Switching capacity 20 Gbps|Dimensions 113.1 x 41.2 x 74.6 mm|Unit Net Weight 0.28 kg |
| Model name |
TSW040 |
| PoE ports |
8 |
| PoE power budget |
240 |
| Primary port count |
8 |
| RJ45 |
8 |
| Shipping Box Depth |
13 |
| Shipping Box Height |
8 |
| Shipping Box Weight |
0.28 |
| Shipping Box Width |
5 |
| Shipping box quantity |
1 |
| Switching capacity |
20 |
| Unit Brutto Volume |
0.00052 |
| Unit Gross Weight |
0.28 |
| Unit Net Weight |
0.28 |
| Vendor Homepage |
teltonika-networks.com/products/ethernet-switches/tsw040 |
